ENERGY STORAGE & CHARGING PRODUCT

Gotion Boats Marine Battery System

Official brand国轩高科

Battery systems for electric vessels and port-side energy replenishment.

LFP cell
LFP-314Ah
Nominal energy
1929.2kWh
Nominal voltage
768V
Max. charge/discharge rate
0.5P
Weight
≈26t
Dimensions (W×D×H)
6058×2438×2896mm

Industry applications

Battery systems for electric vessels and port-side energy replenishment.

Certification and compliance

CCS
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

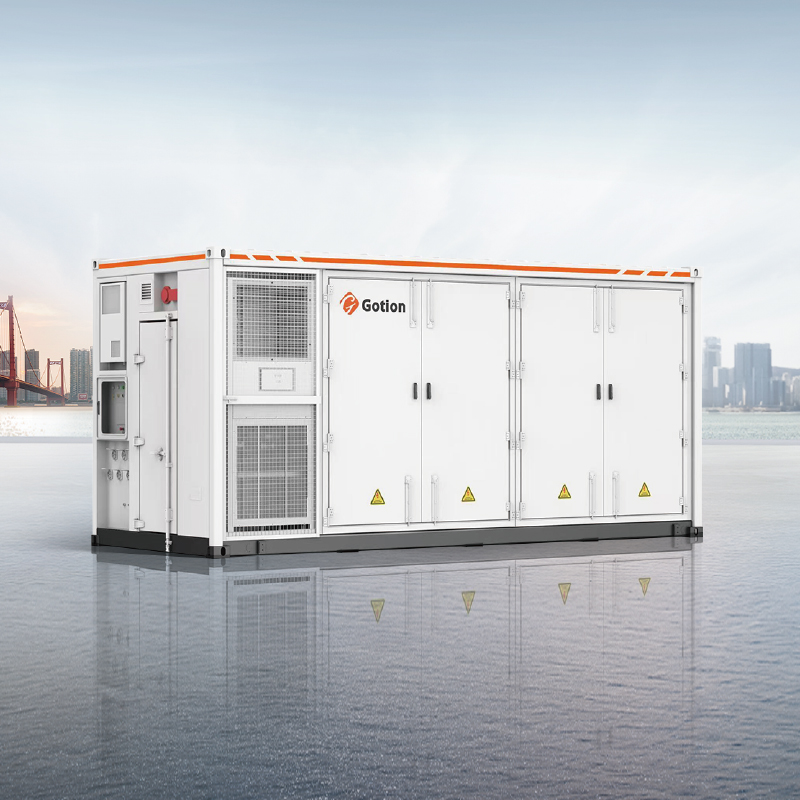

Gotion Boats Marine Battery System

A 1,929.2kWh liquid-cooled marine battery system for electric vessels and port battery-swap stations.

Nominal energy
1,929.2kWh
Nominal voltage
768V
Maximum charging power
964.6kW
Protection form
Weather-tight

Marine energy configuration

Uses 314Ah LFP cells with a recommended 672–864V range for electric-vessel and port swap-station integration.

Liquid cooling

Liquid cooling supports cell-temperature management; operating range is -30 to 55°C and storage range -30 to 60°C.

System communication

CAN, RS485 and TCP interfaces support CAN, Modbus-TCP/IP, Modbus RTU and IEC 104 integration.

Compartment and fire system

Published configuration includes an A60 fire bulkhead and heptafluoropropane system; at about 26t, vessel space, load and interfaces require project confirmation.

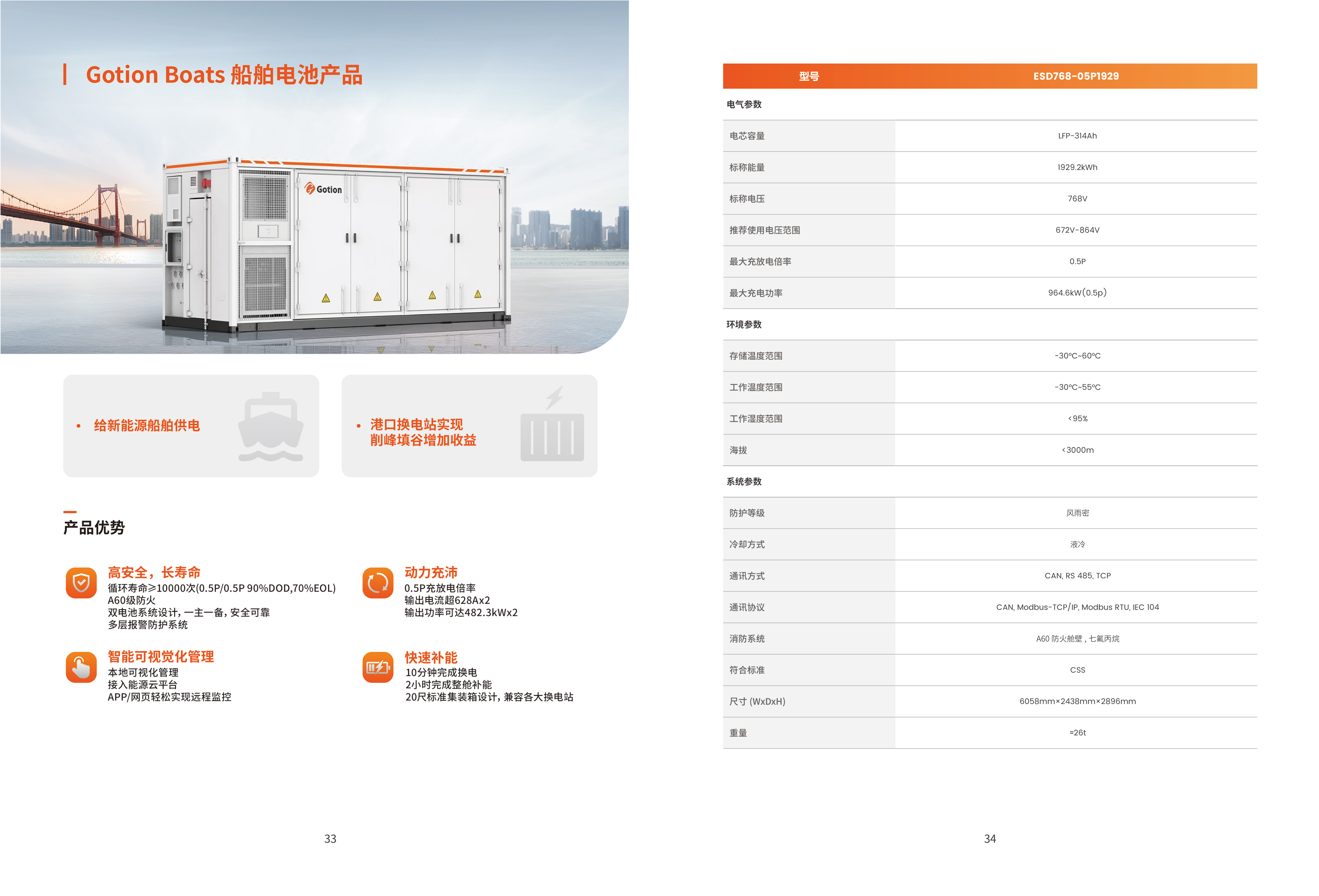

Specifications

LFP cell
LFP-314Ah
Nominal energy
1929.2kWh
Nominal voltage
768V
Max. charge/discharge rate
0.5P
Weight
≈26t
Dimensions (W×D×H)
6058×2438×2896mm

Product highlights

Gotion Boats Marine Battery System — Material 1
超长使用寿命
Gotion Boats Marine Battery System — Material 2
高安全性
Gotion Boats Marine Battery System — Material 3
兼容性强
Gotion Boats Marine Battery System — Material 4
智能可视化
Gotion Boats Marine Battery System — Material 5
标准化
Gotion Boats Marine Battery System — Material 6
动力充沛
Gotion Boats Marine Battery System — Material 7
高效便捷
Gotion Boats Marine Battery System — Material 8
快速补能

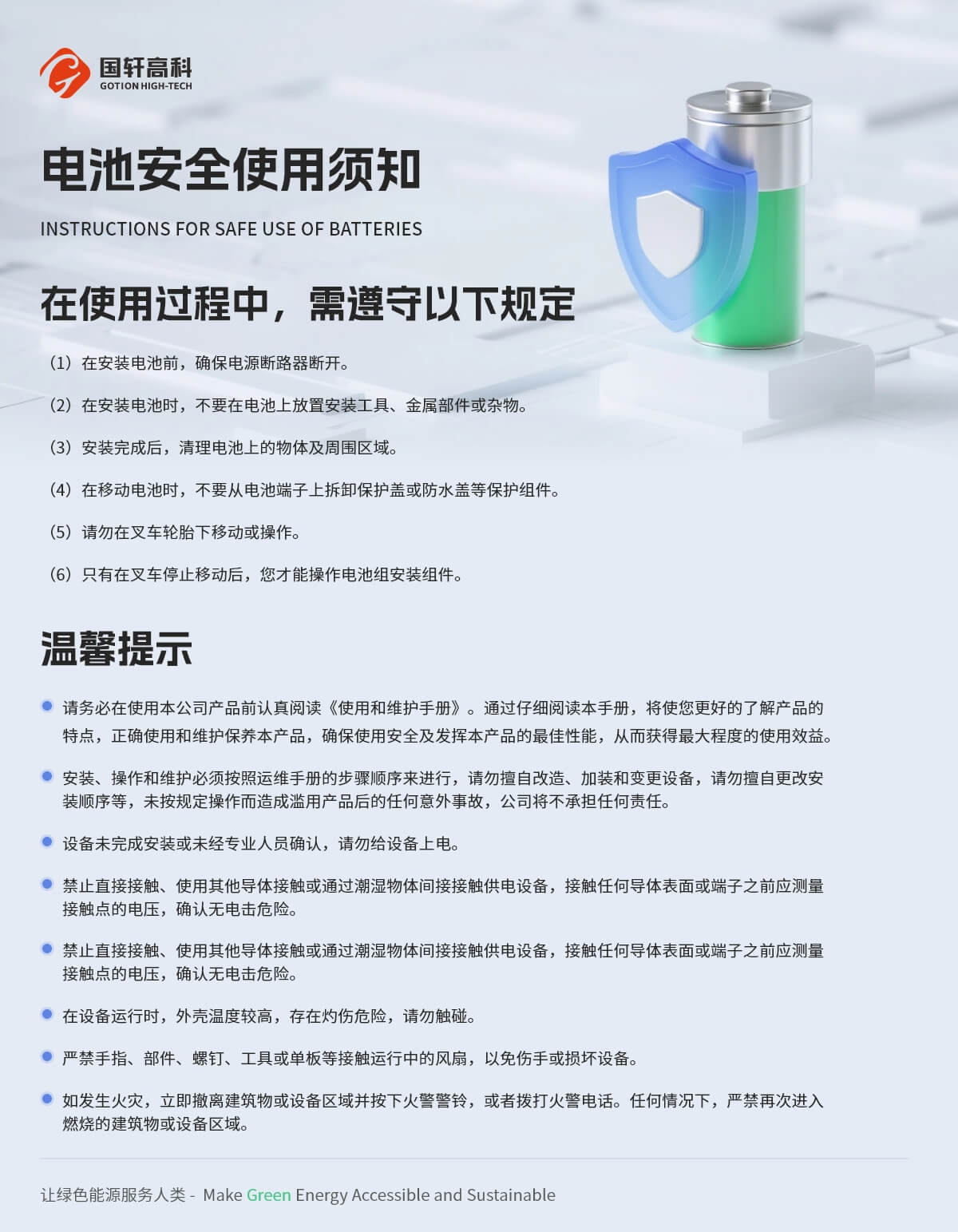

Safety information

Gotion Boats Marine Battery System — Material 1
安全说明
Gotion Boats Marine Battery System — Material 2
规格资料
