← All energy storage products

ENERGY STORAGE & CHARGING PRODUCT

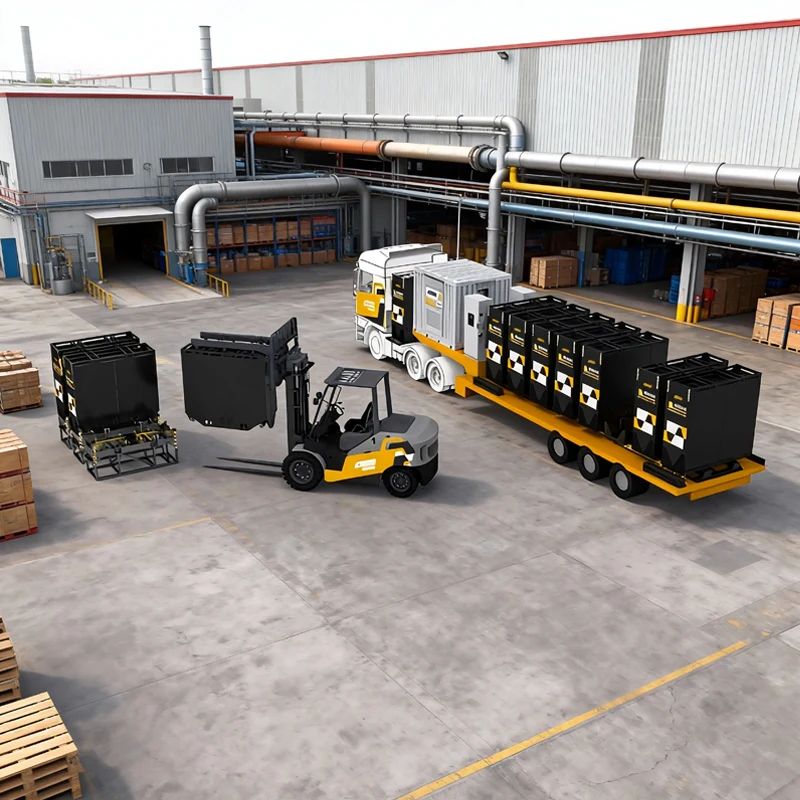

DLL Mobile Storage-Charging-Swapping Solution

Official brand国轩高科

Integrated mobile storage, charging and swapping for logistics, ports and mining.

LFP cell
LFP-340Ah
Nominal energy
452.6kWh
Nominal voltage
665.6Vdc
Peak discharge current
750A
Weight
≈3.8t
Dimensions (W×D×H)
2376×834×1880mm

Industry applications

Integrated mobile storage, charging and swapping for logistics, ports and mining.

Certification and compliance

GB
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

DLL Mobile Storage-Charging-Swapping Solution

A 452.6kWh mobile charging-and-swap battery solution for trunk logistics, ports and mining heavy-duty operations.

Nominal energy
452.6kWh
Nominal voltage
665.6Vdc
Peak discharge power
550kW
Protection rating
IP68

Heavy-duty operations

340Ah LFP cells and a recommended 520–748.8Vdc range support integration for trunk logistics, ports and mines.

Charging and swapping interfaces

Both rated charging and swapping interfaces are 600A for coordinated vehicle, swap-equipment and dispatch design.

Thermal control and communication

Supports liquid or natural cooling, operates from -30 to 45°C and communicates by CAN using the 27930-2023 protocol.

Life and deployment data

Published specifications state 4,000 cycles at 80% SOH and 15-year calendar life; at about 3.8t, space, load and interfaces require confirmation.

Specifications

LFP cell
LFP-340Ah
Nominal energy
452.6kWh
Nominal voltage
665.6Vdc
Peak discharge current
750A
Weight
≈3.8t
Dimensions (W×D×H)
2376×834×1880mm

Product highlights

DLL Mobile Storage-Charging-Swapping Solution — Material 1
成本可控

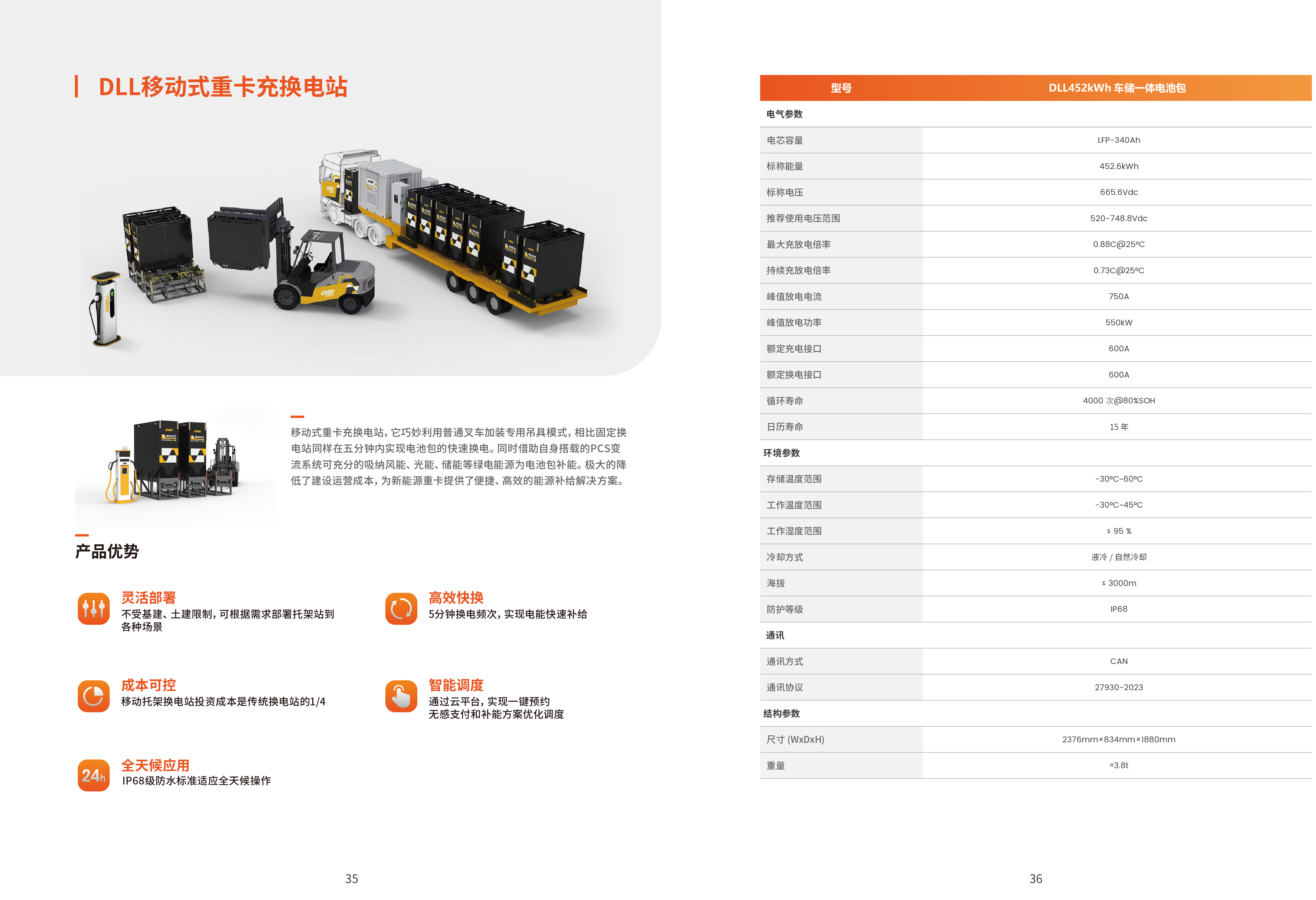

DLL Mobile Storage-Charging-Swapping Solution — Material 2
高安全性
DLL Mobile Storage-Charging-Swapping Solution — Material 3
智能运维
DLL Mobile Storage-Charging-Swapping Solution — Material 4
低维护成本
DLL Mobile Storage-Charging-Swapping Solution — Material 5
高效便捷
DLL Mobile Storage-Charging-Swapping Solution — Material 6
快速补能
DLL Mobile Storage-Charging-Swapping Solution — Material 7
灵活部署
DLL Mobile Storage-Charging-Swapping Solution — Material 8
全天候应用

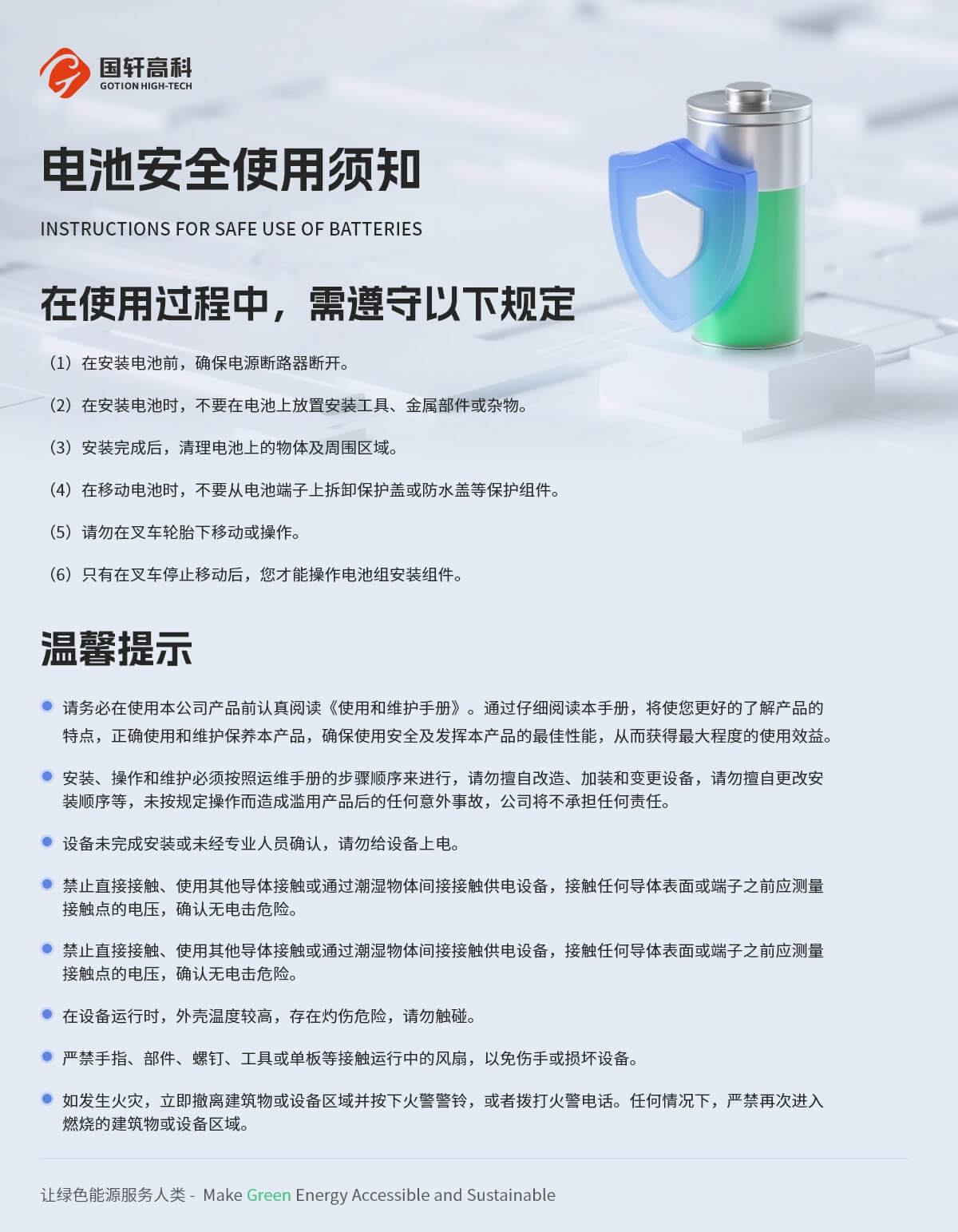

Safety information

DLL Mobile Storage-Charging-Swapping Solution — Material 1
安全说明
DLL Mobile Storage-Charging-Swapping Solution — Material 2
规格资料
