ENERGY STORAGE & CHARGING PRODUCT

EPD166-05P52

Official brand国轩高科

Standardized battery boxes for configurable commercial and utility storage systems.

LFP cell
LFP-314Ah
Nominal energy
52.2kWh
Nominal voltage
166.4V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈340kg
Dimensions (W×D×H)
800×1152×237mm

Industry applications

Standardized battery boxes for configurable commercial and utility storage systems.

Certification and compliance

UN 38.3GBUL
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

EPD166-05P52

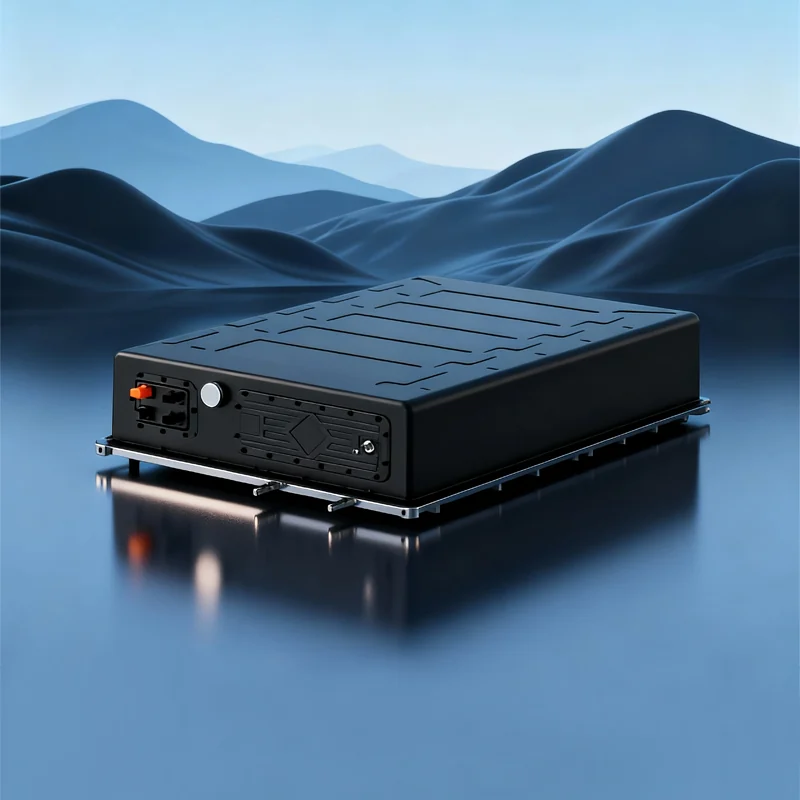

A 52.2kWh liquid-cooled battery box for C&I storage, standalone storage and renewable-energy system integration.

Nominal energy
52.2kWh
Nominal voltage
166.4V
Maximum charging power
26.1kW
Protection rating
IP67

Standardized battery box

Uses 314Ah LFP cells and a standardized enclosure for modular configuration in engineered systems.

Liquid cooling

Liquid cooling supports cell-temperature management; charging range is 0 to 55°C and discharge range -30 to 60°C.

System interface

Recommended voltage is 145.6–187.2V with CAN communication; protocol and protection logic require integration confirmation.

Power and installation

Maximum rate is 0.5P at 25°C and maximum charging power 26.1kW; indoor installation, approximately 340kg.

Specifications

LFP cell
LFP-314Ah
Nominal energy
52.2kWh
Nominal voltage
166.4V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈340kg
Dimensions (W×D×H)
800×1152×237mm

Product highlights

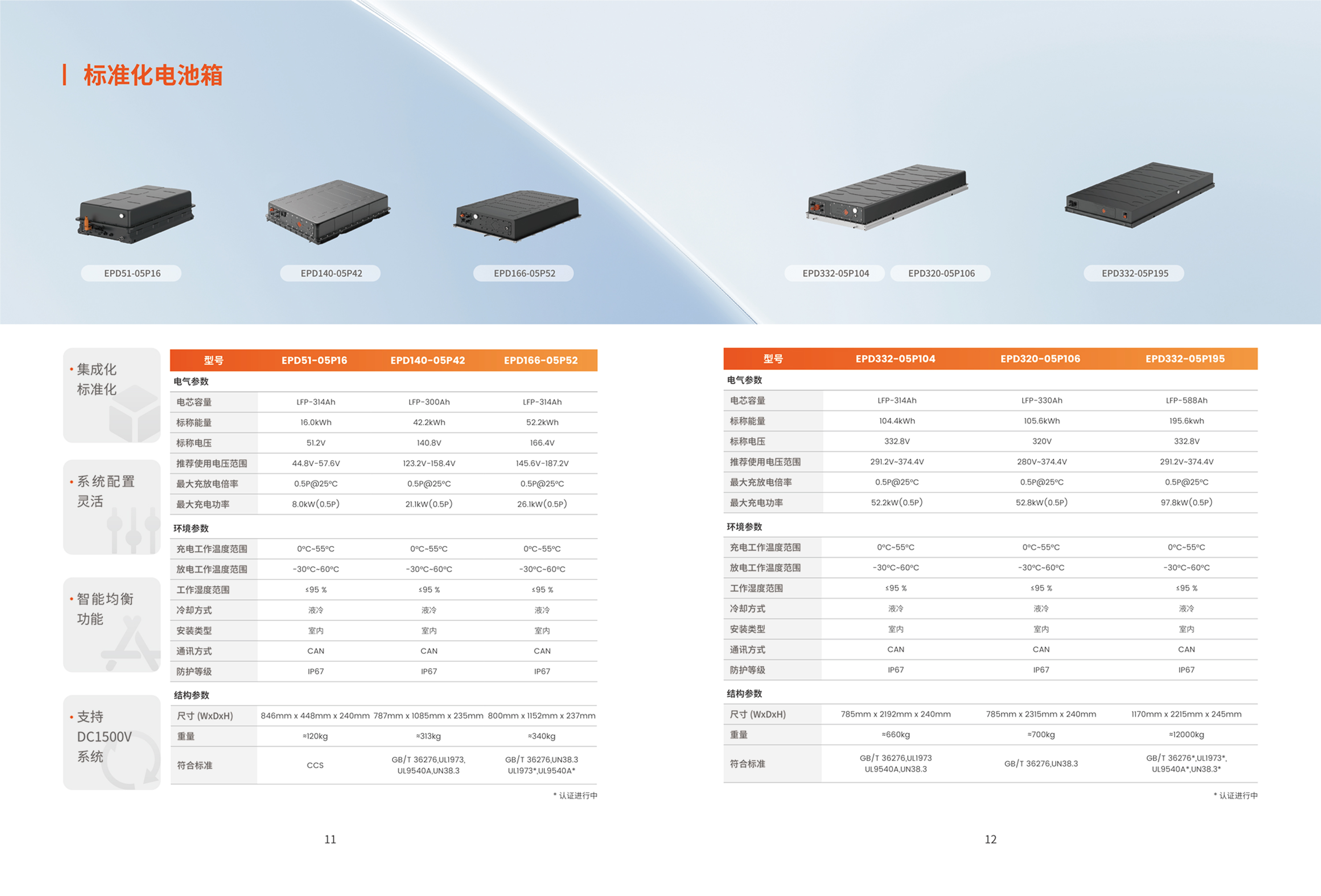

EPD166-05P52 — Material 1
超长使用寿命
EPD166-05P52 — Material 2
多场景应用
EPD166-05P52 — Material 3
高安全性
EPD166-05P52 — Material 4
兼容性强
EPD166-05P52 — Material 5
标准化
EPD166-05P52 — Material 6
集成化
EPD166-05P52 — Material 7
灵活适配
EPD166-05P52 — Material 8
智能均衡

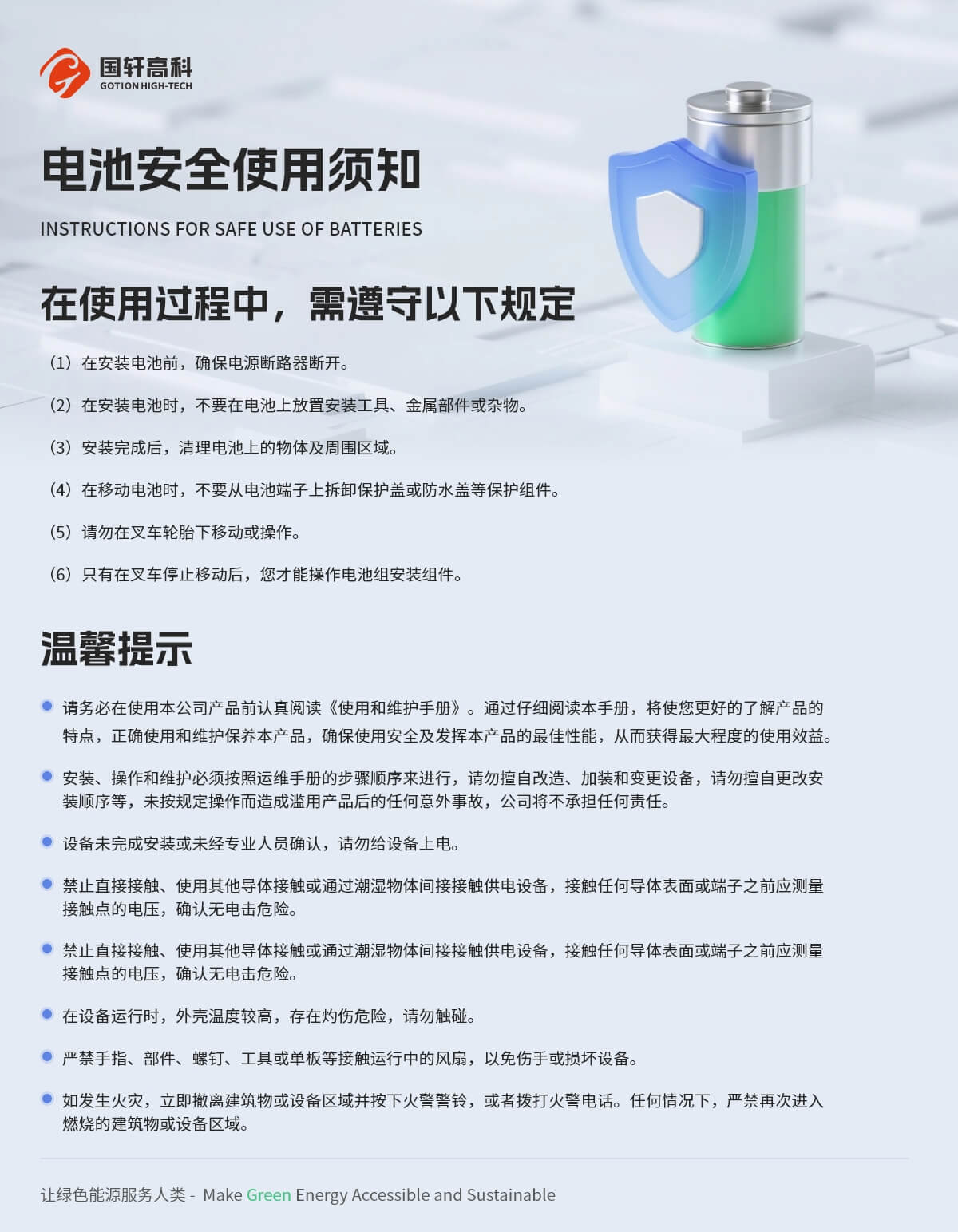

Safety information

EPD166-05P52 — Material 1
安全说明
EPD166-05P52 — Material 2
规格资料
