ENERGY STORAGE & CHARGING PRODUCT

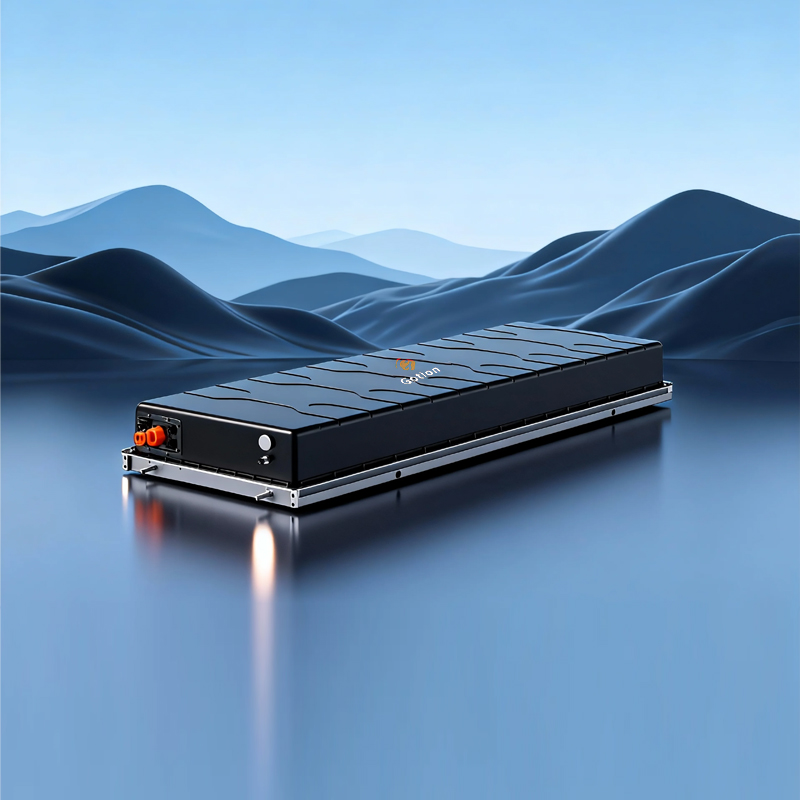

EPD320-05P106

Official brand国轩高科

Standardized battery boxes for configurable commercial and utility storage systems.

LFP cell
LFP-330Ah
Nominal energy
105.6kWh
Nominal voltage
320V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈700kg
Dimensions (W×D×H)
785×2315×240mm

Industry applications

Standardized battery boxes for configurable commercial and utility storage systems.

Certification and compliance

UN 38.3GB
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

EPD320-05P106

A 105.6kWh liquid-cooled battery box for standalone storage, renewable integration and thermal-storage frequency regulation.

Nominal energy
105.6kWh
Nominal voltage
320V
Maximum charging power
52.8kW
Protection rating
IP67

Standardized battery box

Uses 330Ah LFP cells and a standardized enclosure for modular configuration in engineered systems.

Liquid cooling

Liquid cooling supports cell-temperature management; charging range is 0 to 55°C and discharge range -30 to 60°C.

System interface

Recommended voltage is 280–374.4V with CAN communication; protocol and protection logic require integration confirmation.

Power and installation

Maximum rate is 0.5P at 25°C and maximum charging power 52.8kW; indoor installation, approximately 700kg.

Specifications

LFP cell
LFP-330Ah
Nominal energy
105.6kWh
Nominal voltage
320V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈700kg
Dimensions (W×D×H)
785×2315×240mm

Product highlights

EPD320-05P106 — Material 1
超长使用寿命
EPD320-05P106 — Material 2
多场景应用
EPD320-05P106 — Material 3
高安全性
EPD320-05P106 — Material 4
兼容性强
EPD320-05P106 — Material 5
标准化
EPD320-05P106 — Material 6
集成化
EPD320-05P106 — Material 7
灵活适配
EPD320-05P106 — Material 8
智能均衡

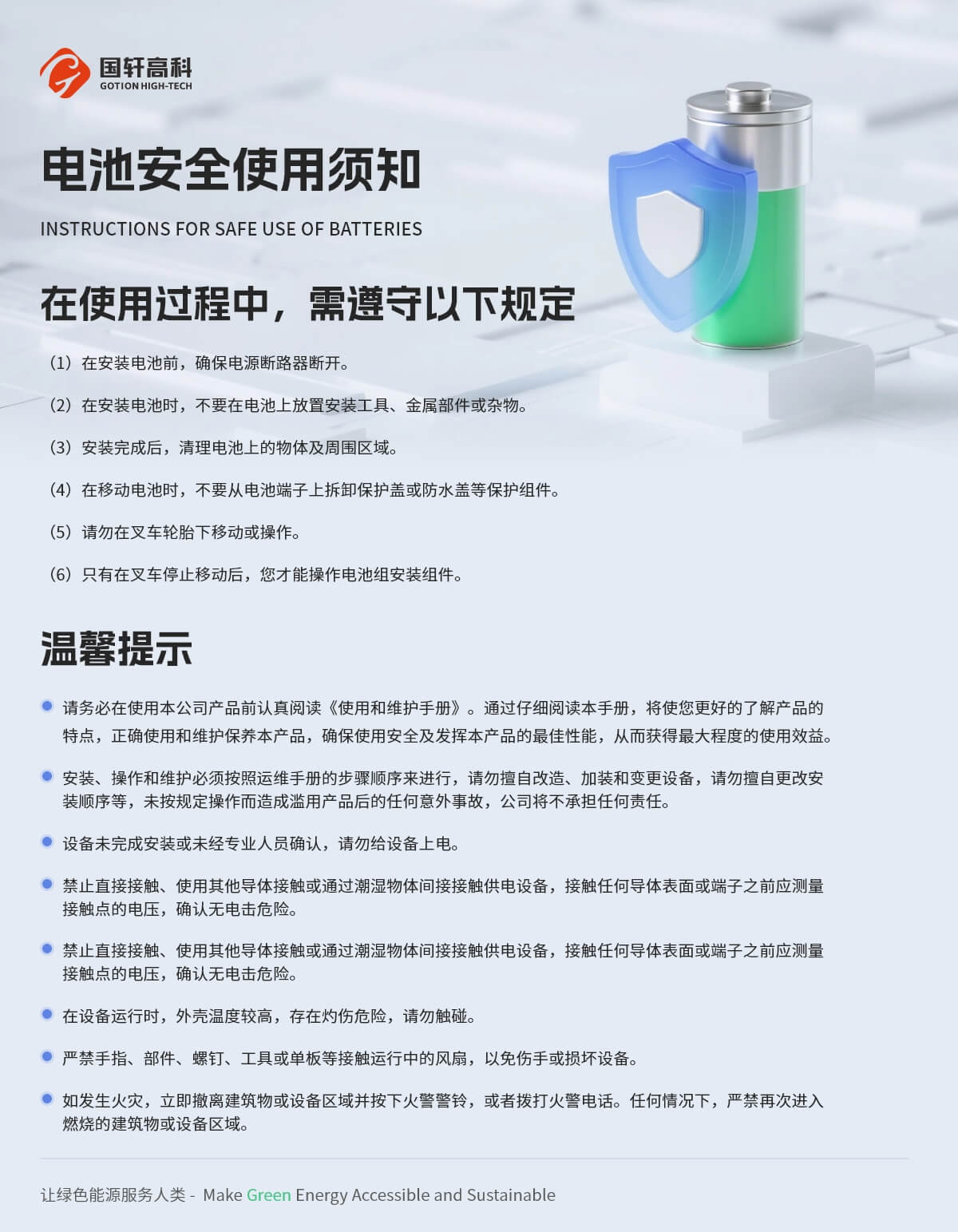

Safety information

EPD320-05P106 — Material 1
安全说明

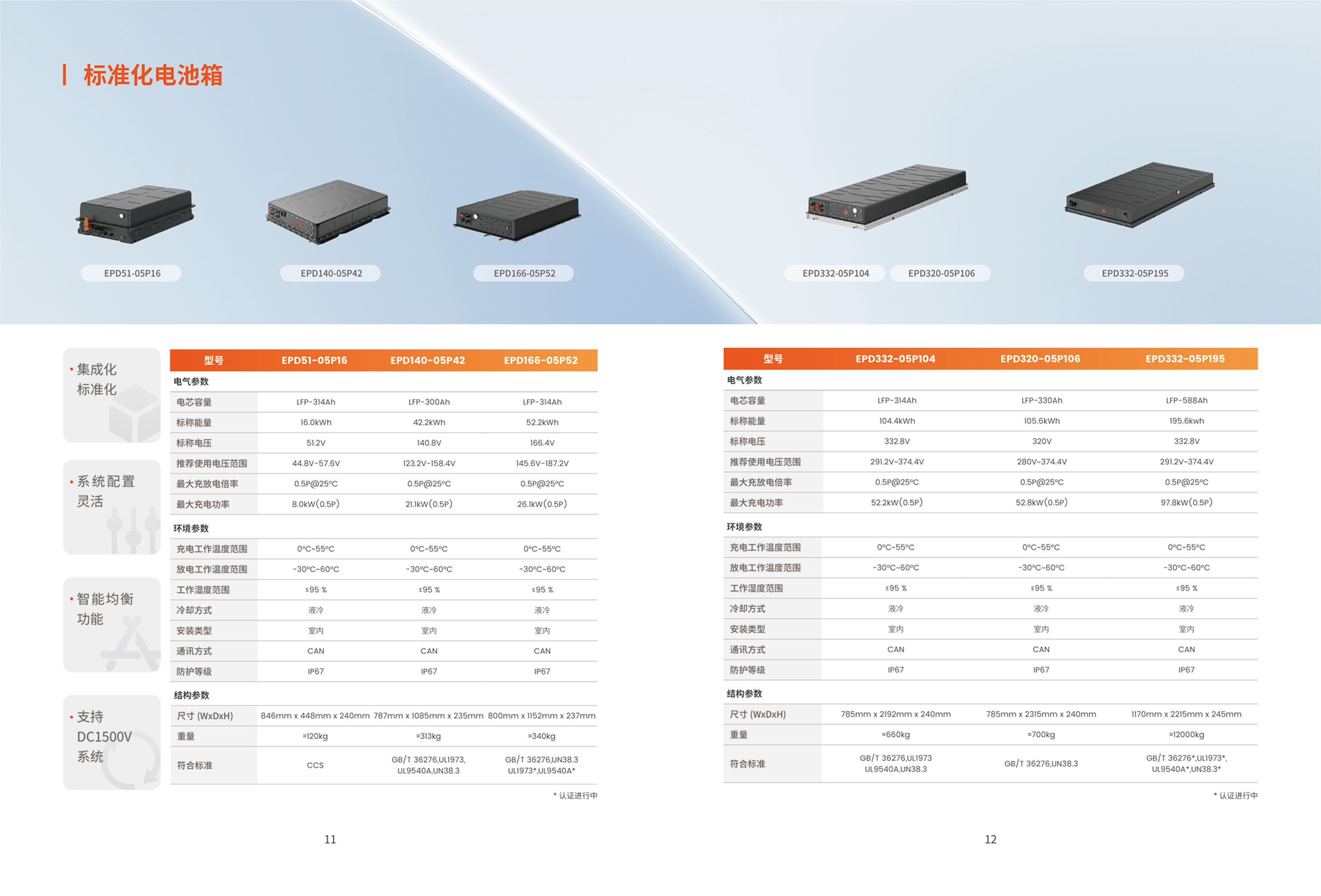

EPD320-05P106 — Material 2
规格资料
