ENERGY STORAGE & CHARGING PRODUCT

EPD332-05P104

Official brand国轩高科

Standardized battery boxes for configurable commercial and utility storage systems.

LFP cell
LFP-314Ah
Nominal energy
104.4kWh
Nominal voltage
332.8V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈660kg
Dimensions (W×D×H)
785×2192×240mm

Industry applications

Standardized battery boxes for configurable commercial and utility storage systems.

Certification and compliance

UN 38.3GBUL
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

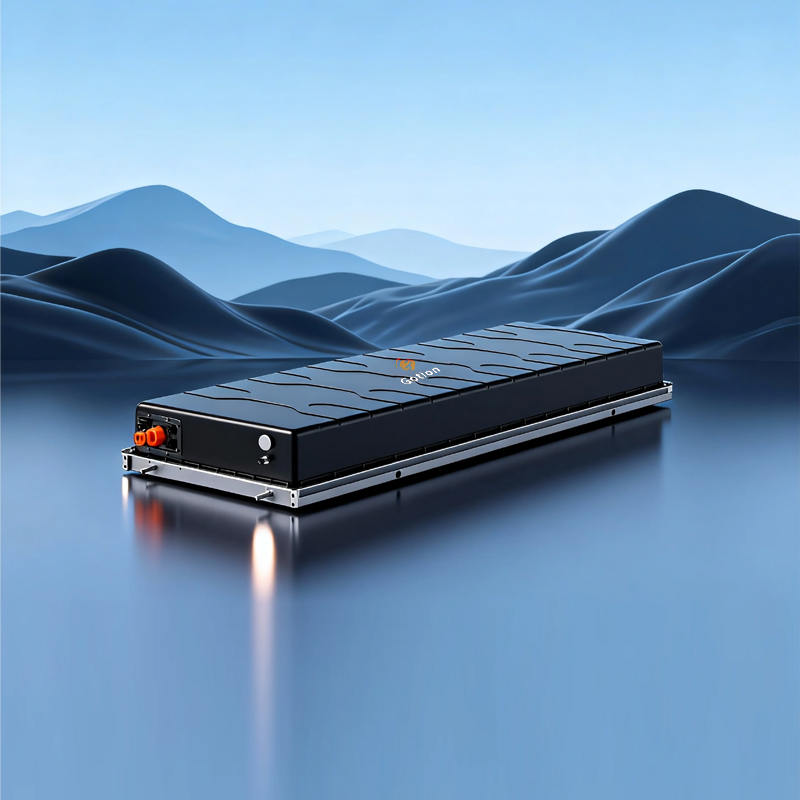

EPD332-05P104

A 104.4kWh liquid-cooled battery box for standalone storage, renewable integration and thermal-storage frequency regulation.

Nominal energy
104.4kWh
Nominal voltage
332.8V
Maximum charging power
52.2kW
Protection rating
IP67

Standardized battery box

Uses 314Ah LFP cells and a standardized enclosure for modular configuration in engineered systems.

Liquid cooling

Liquid cooling supports cell-temperature management; charging range is 0 to 55°C and discharge range -30 to 60°C.

System interface

Recommended voltage is 291.2–374.4V with CAN communication; protocol and protection logic require integration confirmation.

Power and installation

Maximum rate is 0.5P at 25°C and maximum charging power 52.2kW; indoor installation, approximately 660kg.

Specifications

LFP cell
LFP-314Ah
Nominal energy
104.4kWh
Nominal voltage
332.8V
Max. charge/discharge rate
0.5P @ 25°C
Weight
≈660kg
Dimensions (W×D×H)
785×2192×240mm

Product highlights

EPD332-05P104 — Material 1
超长使用寿命
EPD332-05P104 — Material 2
多场景应用
EPD332-05P104 — Material 3
高安全性
EPD332-05P104 — Material 4
兼容性强
EPD332-05P104 — Material 5
标准化
EPD332-05P104 — Material 6
集成化
EPD332-05P104 — Material 7
灵活适配
EPD332-05P104 — Material 8
智能均衡

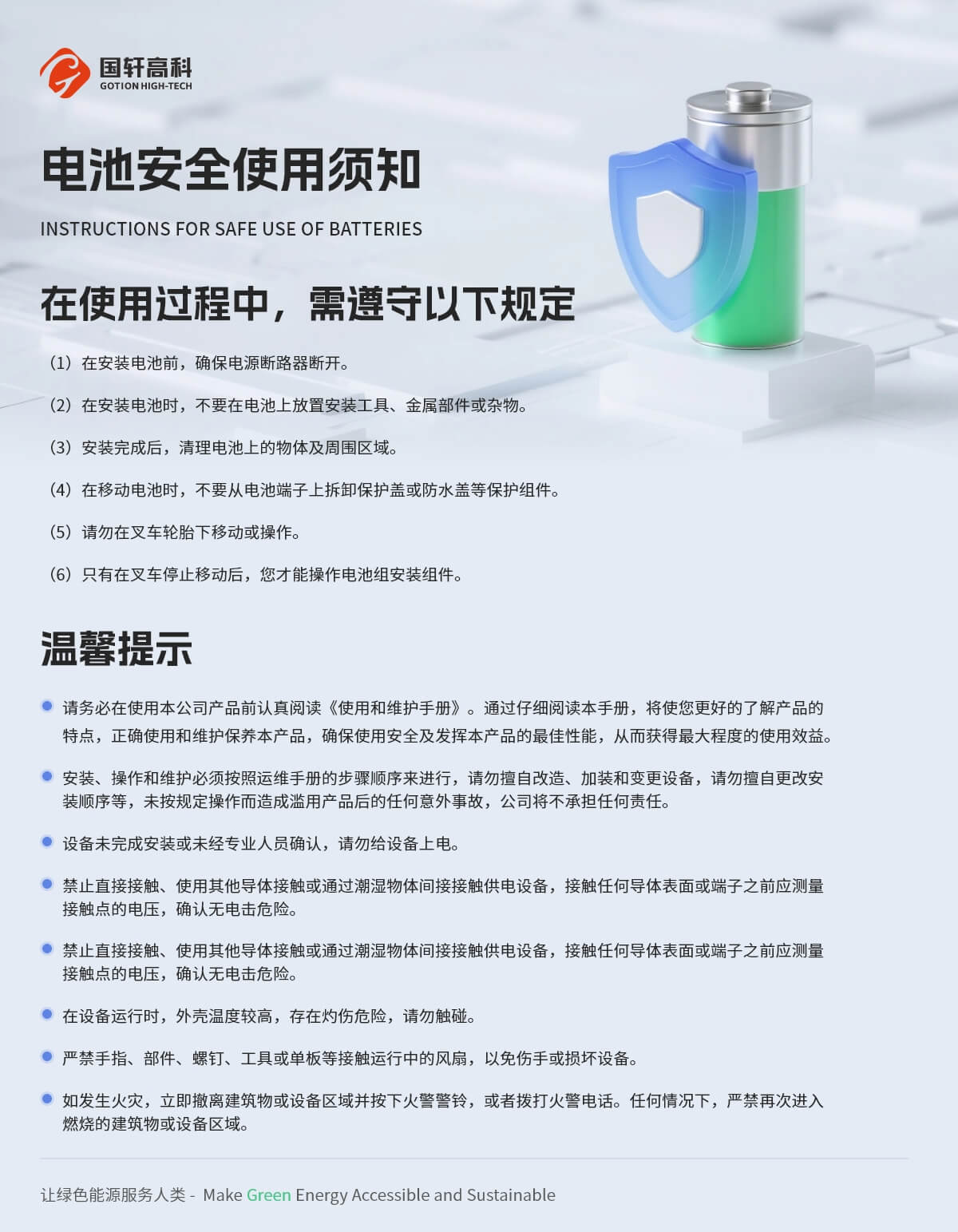

Safety information

EPD332-05P104 — Material 1
安全说明

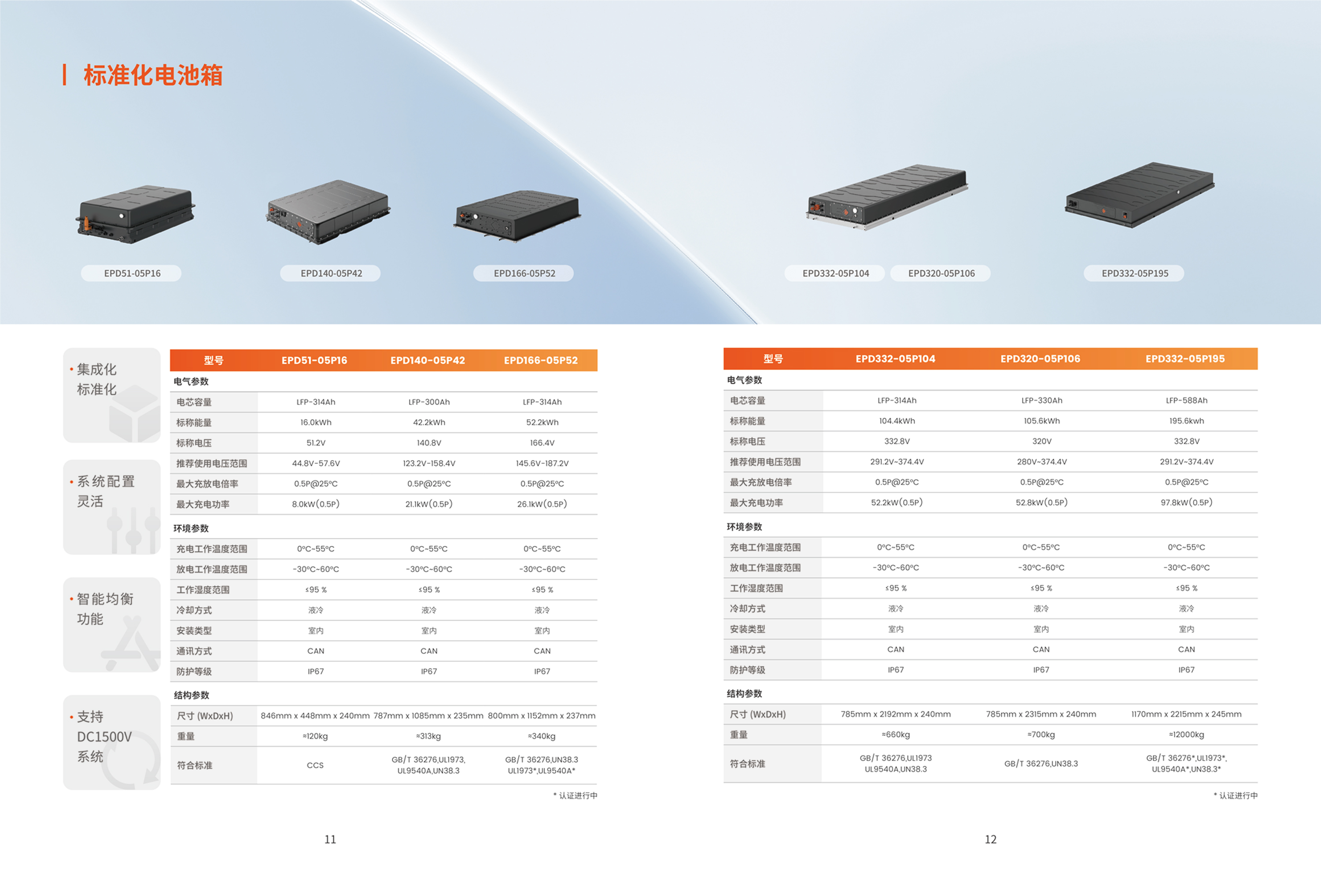

EPD332-05P104 — Material 2
规格资料
