Standardized battery box
Uses 588Ah LFP cells and a standardized enclosure for modular configuration in engineered systems.
ENERGY STORAGE & CHARGING PRODUCT
EPD332-05P195
Official brand国轩高科
Standardized battery boxes for configurable commercial and utility storage systems.
- LFP cell
- LFP-588Ah
- Nominal energy
- 195.6kWh
- Nominal voltage
- 332.8V
- Max. charge/discharge rate
- 0.5P @ 25°C
- Weight
- ≈1200kg
- Dimensions (W×D×H)
- 1236×2218×248mm
Industry applications
Standardized battery boxes for configurable commercial and utility storage systems.
Certification and compliance
UN 38.3GBUL
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →Product introduction
Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

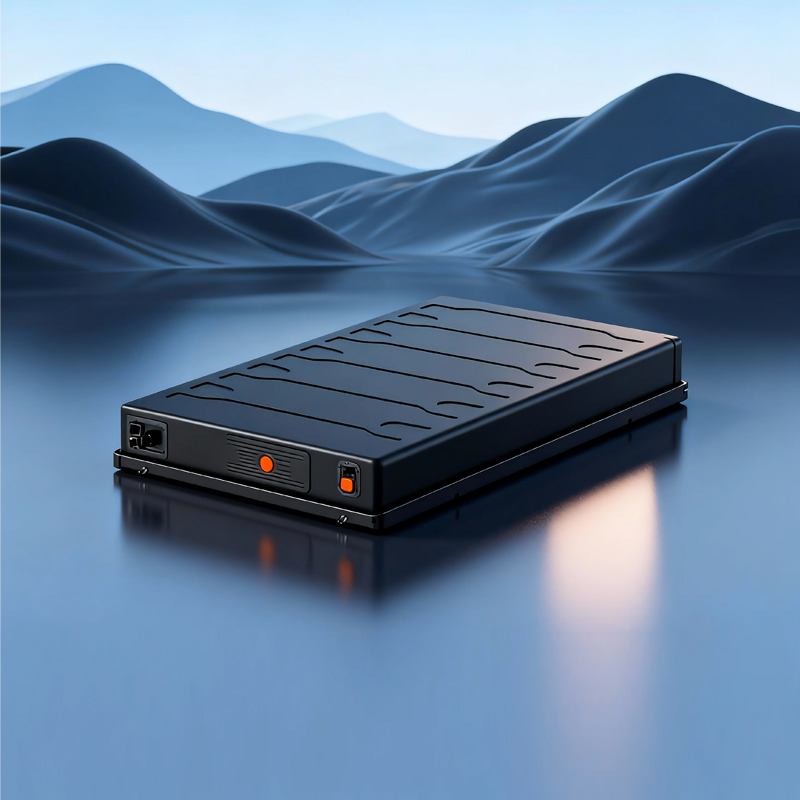

A 195.6kWh liquid-cooled battery box for standalone storage, renewable integration and thermal-storage frequency regulation.
- Nominal energy
- 195.6kWh
- Nominal voltage
- 332.8V
- Maximum charging power
- 97.8kW
- Protection rating
- IP67
Liquid cooling
Liquid cooling supports cell-temperature management; charging range is 0 to 55°C and discharge range -30 to 60°C.
System interface
Recommended voltage is 291.2–374.4V with CAN communication; protocol and protection logic require integration confirmation.
Power and installation
Maximum rate is 0.5P at 25°C and maximum charging power 97.8kW; indoor installation, approximately 1200kg.

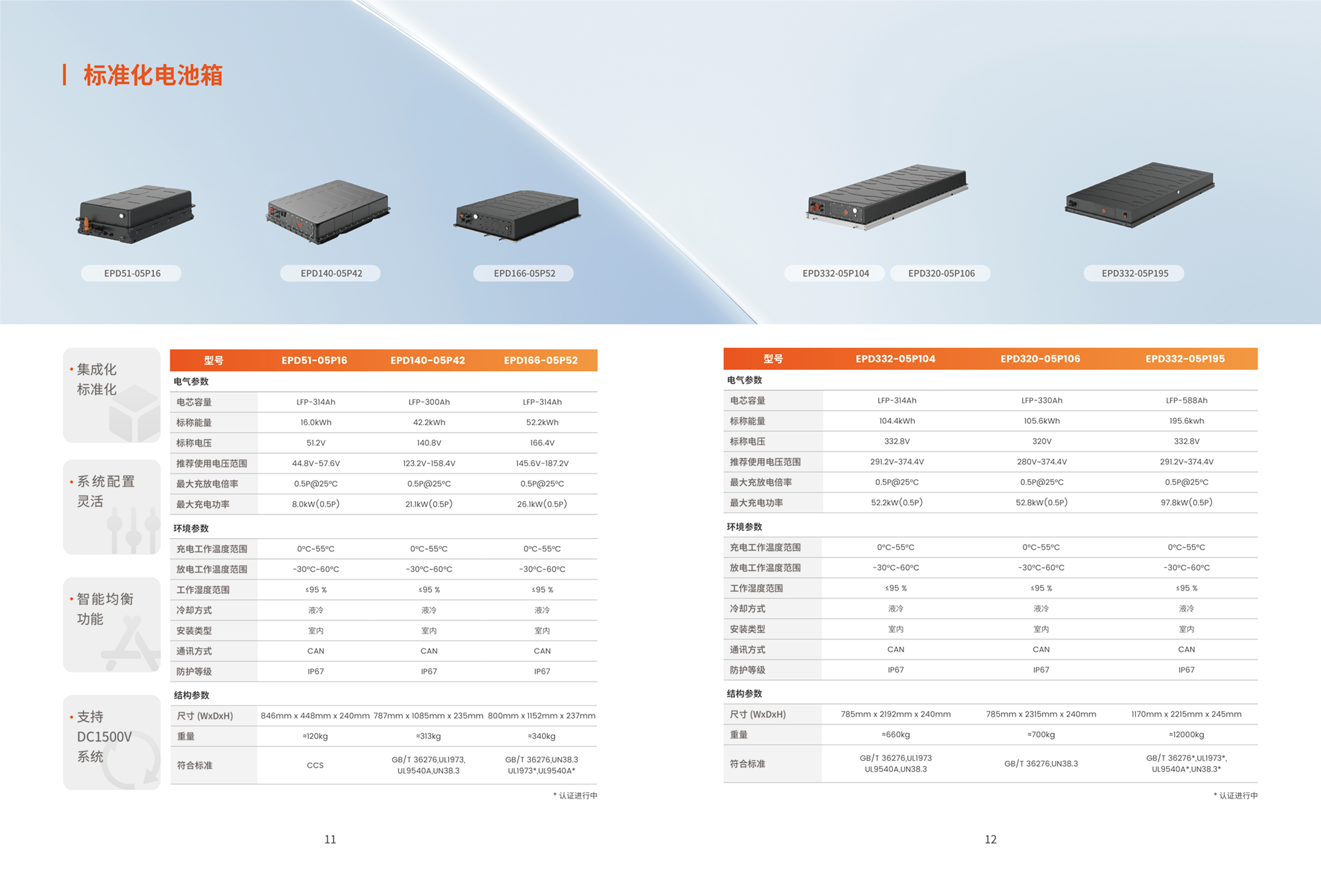

Specifications
- LFP cell
- LFP-588Ah
- Nominal energy
- 195.6kWh
- Nominal voltage
- 332.8V
- Max. charge/discharge rate
- 0.5P @ 25°C
- Weight
- ≈1200kg
- Dimensions (W×D×H)
- 1236×2218×248mm
Product highlights

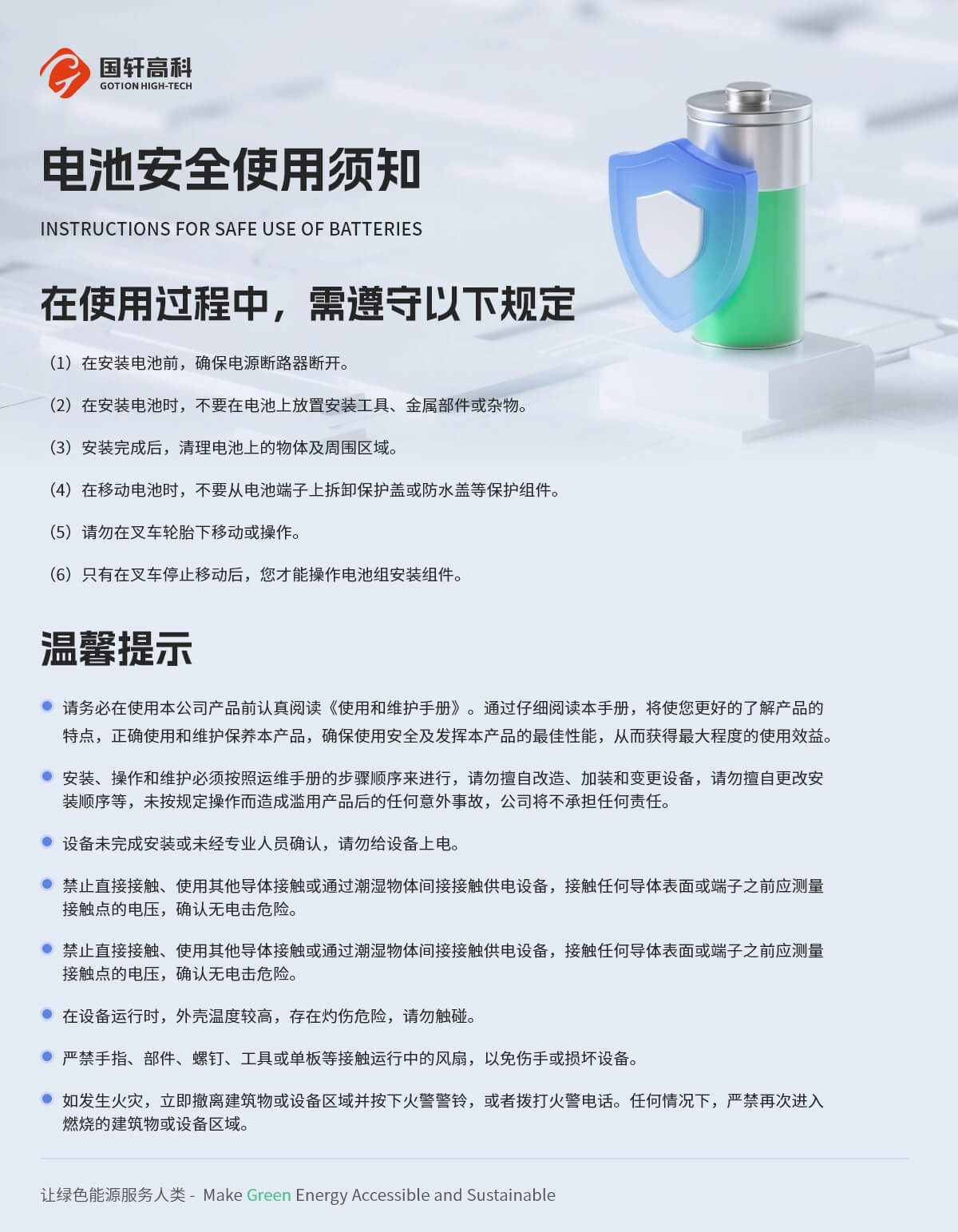

Safety information
