ENERGY STORAGE & CHARGING PRODUCT

HSD51.2-05P16L

Official brand国轩高科

A compact LFP battery system for residential energy storage.

LFP cell
LFP-314Ah
Nominal energy
16kWh
Nominal voltage
51.2V
Protection rating
IP65
Weight
≈135kg
Dimensions (W×D×H)
687×224×738mm

Industry applications

A compact LFP battery system for residential energy storage.

Certification and compliance

UN 38.3IEC
Long service lifeMulti-scenario useSafety-focused designCertification support
Discuss this product with GOTION JTM →

Product introduction

Explore product visuals, technical specifications, key advantages and certification information. Contact GOTION JTM for configuration, quotation and delivery planning.

HSD51.2-05P16L

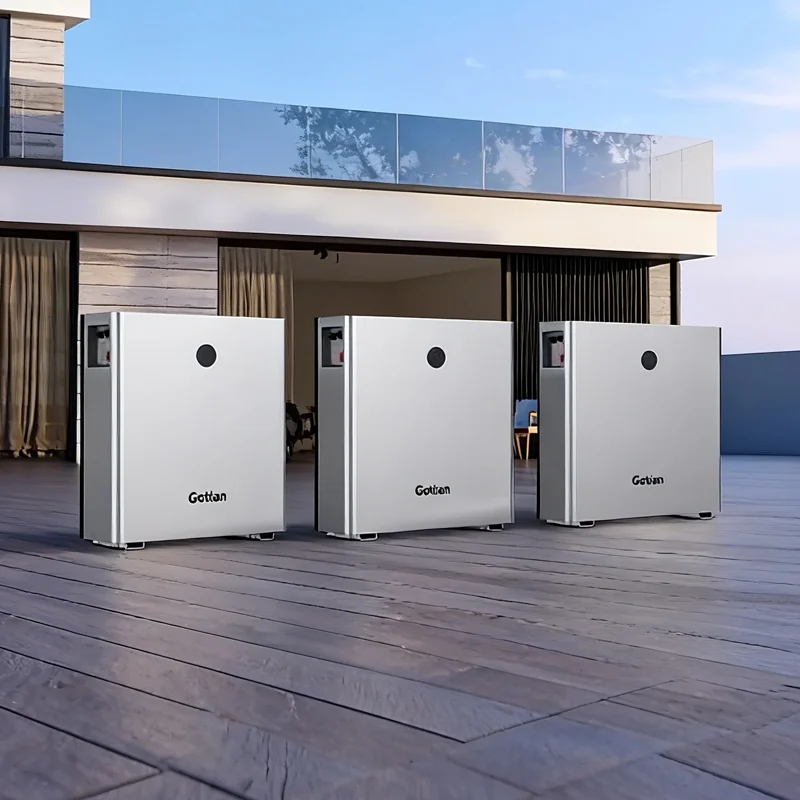

A GOTION HOME 3.0 16kWh LFP storage system for residential solar, backup power and home-energy management.

Nominal energy
16kWh
Maximum charge/discharge power
8kW
Outdoor installation support
IP65
Communication interfaces
CAN / RS485

Cycle capability

Uses 314Ah LFP cells; published product material states more than 10,000 charge cycles.

High-power output

Maximum charge/discharge power is 8kW for configured household loads, solar generation and backup-power requirements.

Safety-focused design

IP65 protection and natural cooling support indoor or outdoor installation; temperature, location and protection settings require project confirmation.

PCS integration

CAN and RS485 support communication with compatible PCS equipment; exact PCS models must be confirmed for each project.

Specifications

LFP cell
LFP-314Ah
Nominal energy
16kWh
Nominal voltage
51.2V
Protection rating
IP65
Weight
≈135kg
Dimensions (W×D×H)
687×224×738mm

Product highlights

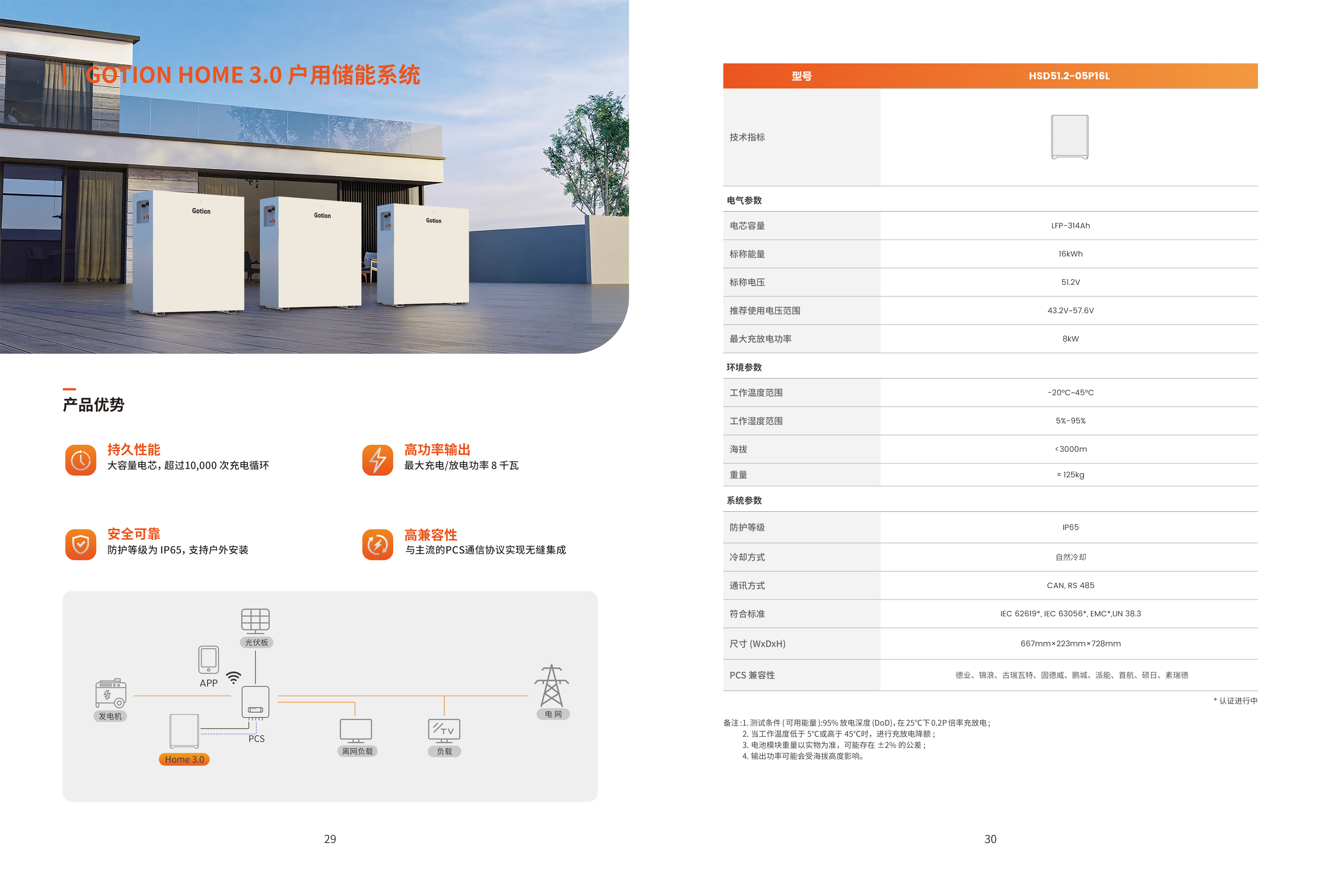

HSD51.2-05P16L — Material 1
超长使用寿命
HSD51.2-05P16L — Material 2
高安全性
HSD51.2-05P16L — Material 3
高效转换
HSD51.2-05P16L — Material 4
兼容性强
HSD51.2-05P16L — Material 5
高效便捷
HSD51.2-05P16L — Material 6
灵活安装
HSD51.2-05P16L — Material 7
灵活部署
HSD51.2-05P16L — Material 8
一体化设计

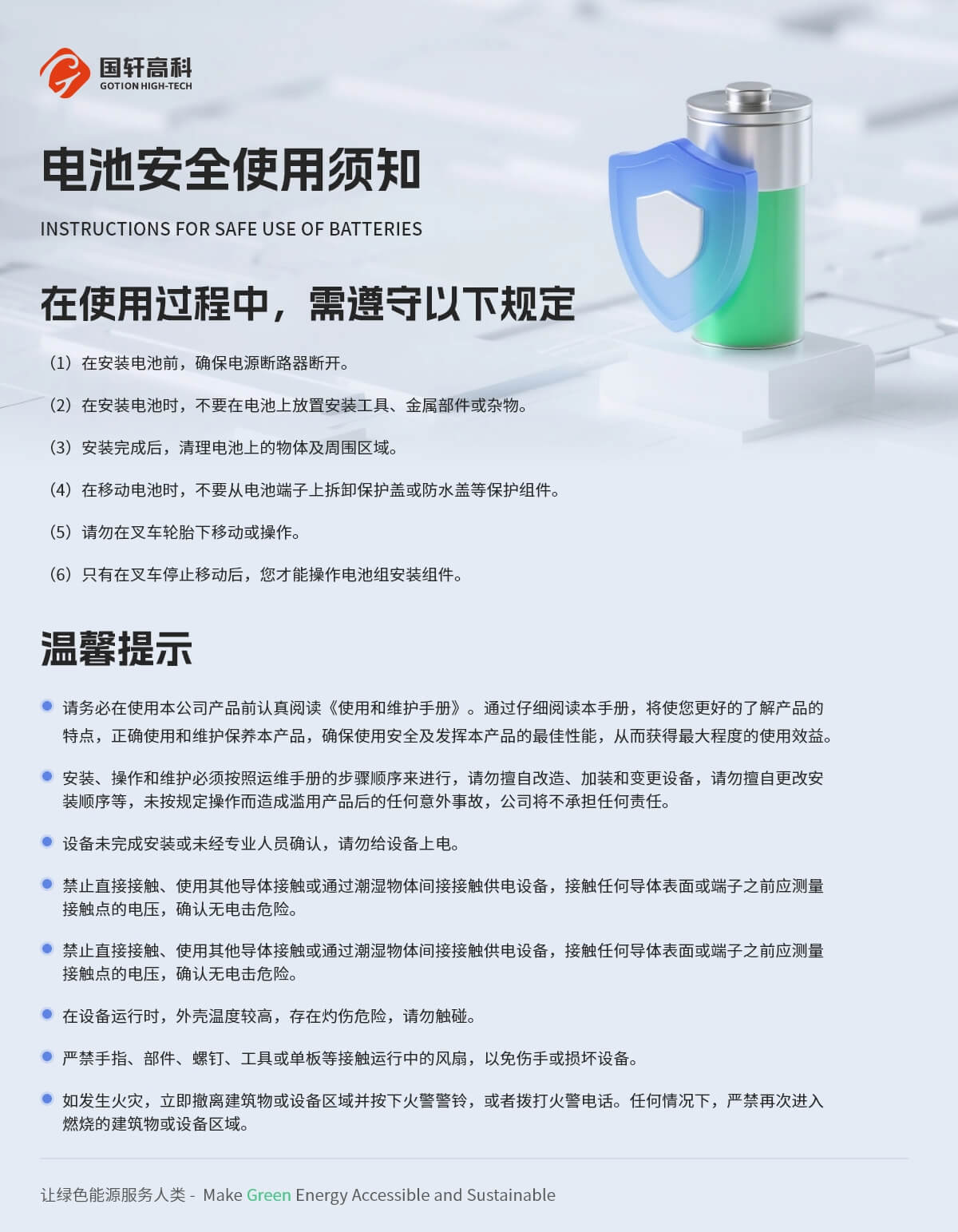

Safety information

HSD51.2-05P16L — Material 1
安全说明
HSD51.2-05P16L — Material 2
规格资料
