Zhiyuan SERIES

4825YA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage	48V
Rated capacity	25Ah
Rated energy	1200Wh
Charge voltage limit	54.6V
Discharge cutoff voltage	37.5V
Maximum charge current	9A
Maximum discharge current	34A
Discharge temperature	-20℃～65℃
Charge temperature	-10℃～55℃
Compatible motor power	≤400W
Weight	9.3±0.2kg
Communication	Bluetooth
Ingress protection	IPX7

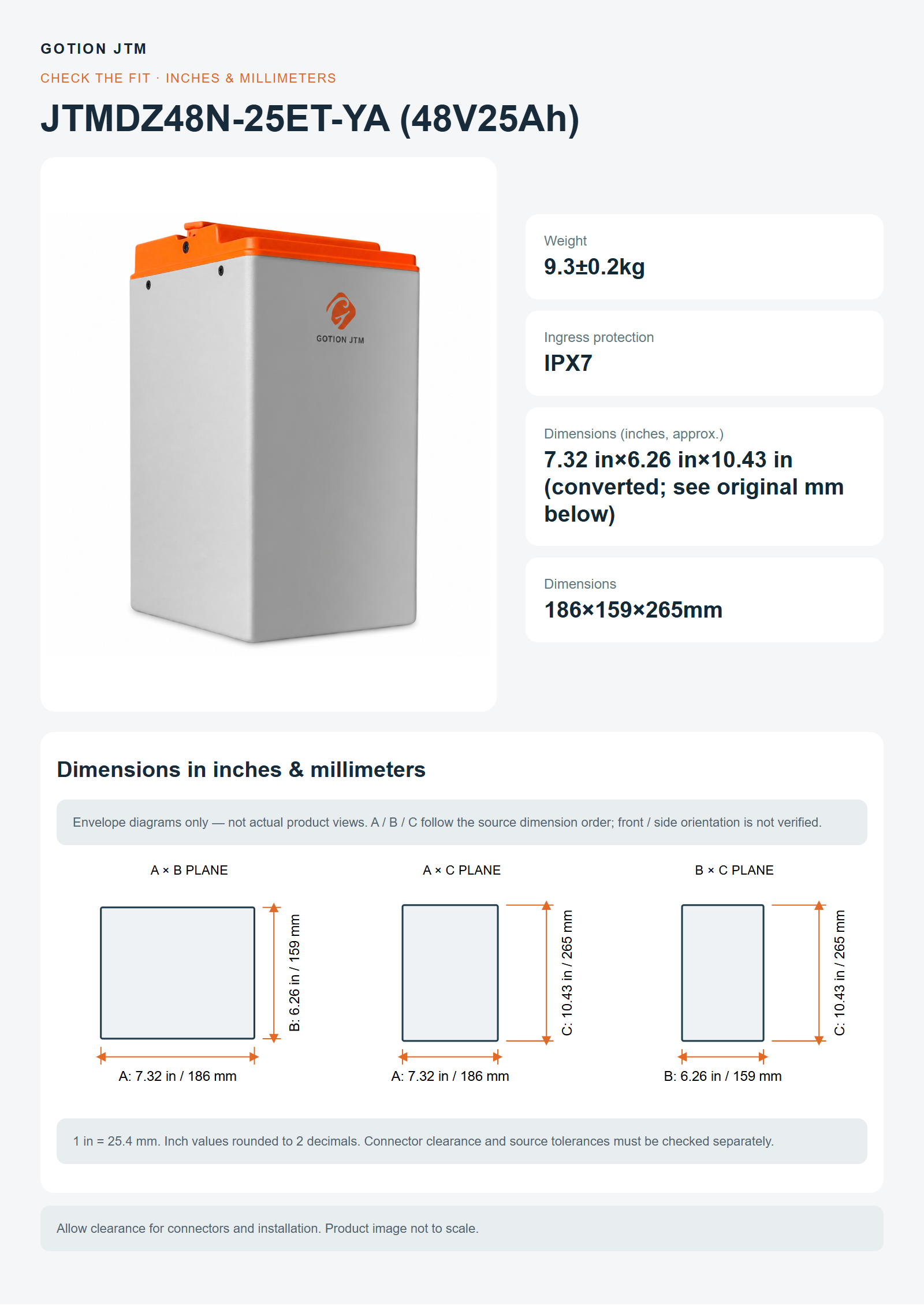

Dimensions	186×159×265mm

Source record: p16-01 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
