Stack SERIES

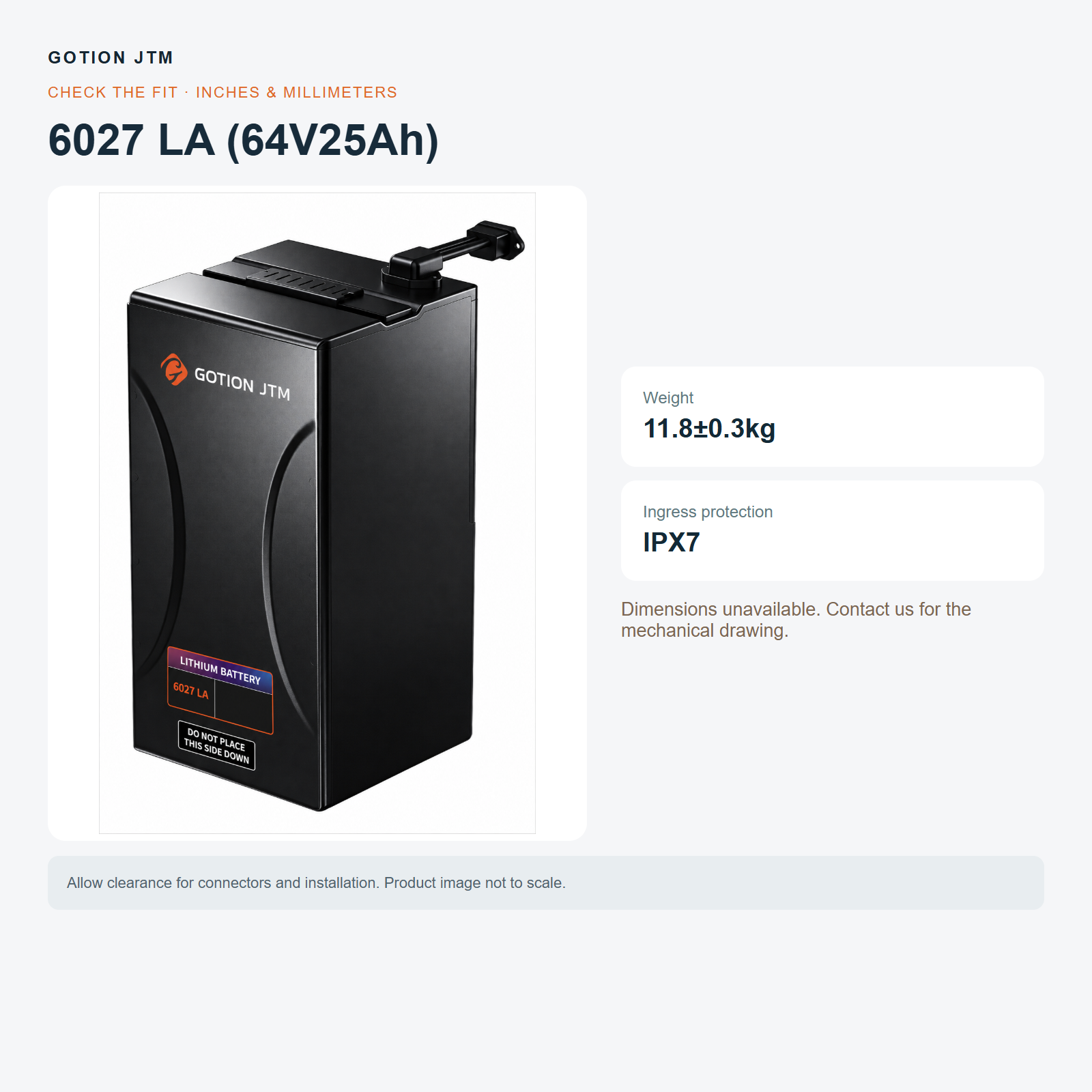

6027LA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage	64V
Rated capacity	25Ah
Rated energy	1600Wh
Charge voltage limit	73V
Discharge cutoff voltage	50V
Maximum charge current	12.5A
Maximum discharge current	35A
Discharge temperature	-20℃~60℃
Charge temperature	-10℃~55℃
Communication	Bluetooth
Compatible motor power	≤ 1000W
Weight	11.8±0.3kg
Ingress protection	IPX7

Source record: p09-01 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
