Zhiyuan SERIES

6032YA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage	64V
Rated capacity	30Ah
Rated energy	1920Wh
Charge voltage limit	73V
Discharge cutoff voltage	50V
Maximum charge current	12A
Maximum discharge current	40A
Discharge temperature	-20℃～60℃
Charge temperature	-10℃～55℃ / -20℃～55℃（with heating）
Compatible motor power	≤ 1000W
Communication	Bluetooth
Weight	15±0.3kg
Ingress protection	IPX5

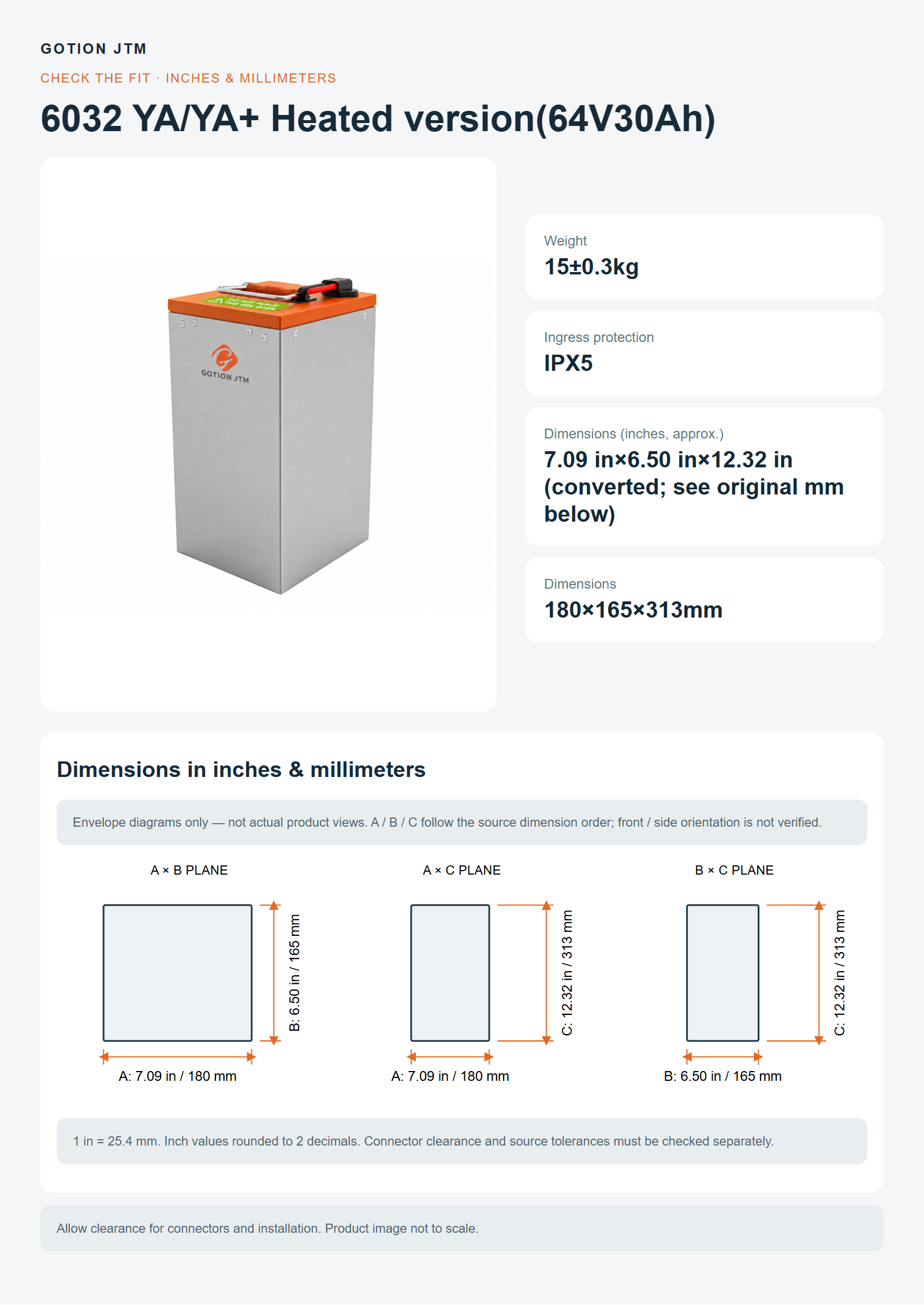

Dimensions	180×165×313mm

Source record: p16-02 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
