GOTION JTMELECTRIC TWO-WHEELER BATTERIESLanguage

Stack

6045LA

Check voltage, charger, operating current, connectors and installation clearance. A lithium upgrade is not automatically plug-and-play.

Discuss your project

Review preview. Product artwork and specifications require confirmation.

Source specifications

Original source data / English. Final model and variant require confirmation.

Nominal voltage	64V
Rated capacity	40Ah
Rated energy	2560Wh
Charge voltage limit	73V
Discharge cutoff voltage	48V
Maximum charge current	20A
Maximum discharge current	50A
Discharge temperature	-20℃~60℃
Charge temperature	-10℃~55℃
Communication	Bluetooth
Ingress protection	IPX5
Weight	16.9±0.5kg
Compatible motor power	≤1200W

Product details

Shared illustration — BMS protection — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

APP monitoring

Shared illustration — APP monitoring — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

Riding scenarios

Shared illustration — Riding scenarios — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

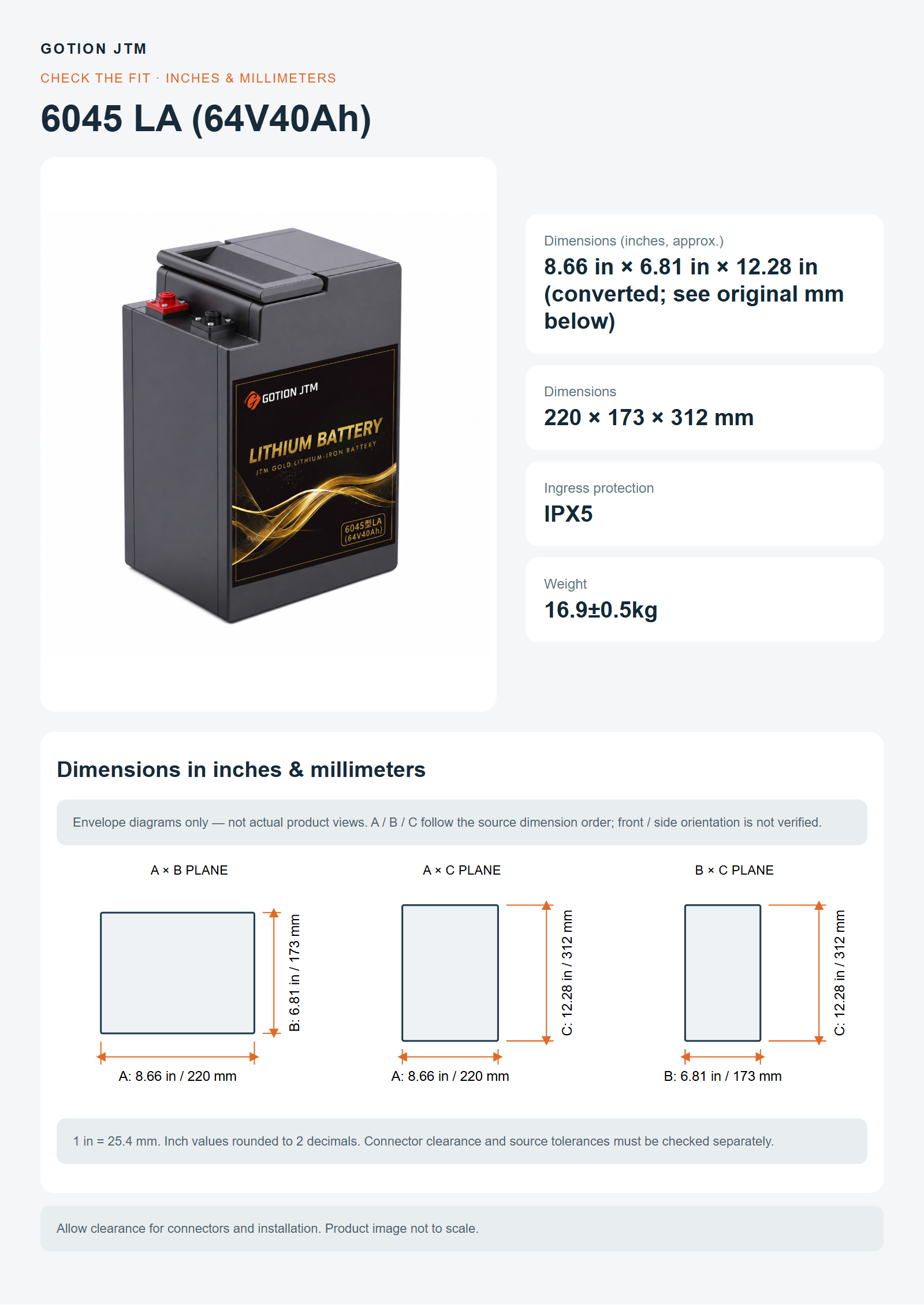

Dimensions · in / mm

6045LA — Dimensions — inches & millimeters
