Diamond SERIES

6064ZB

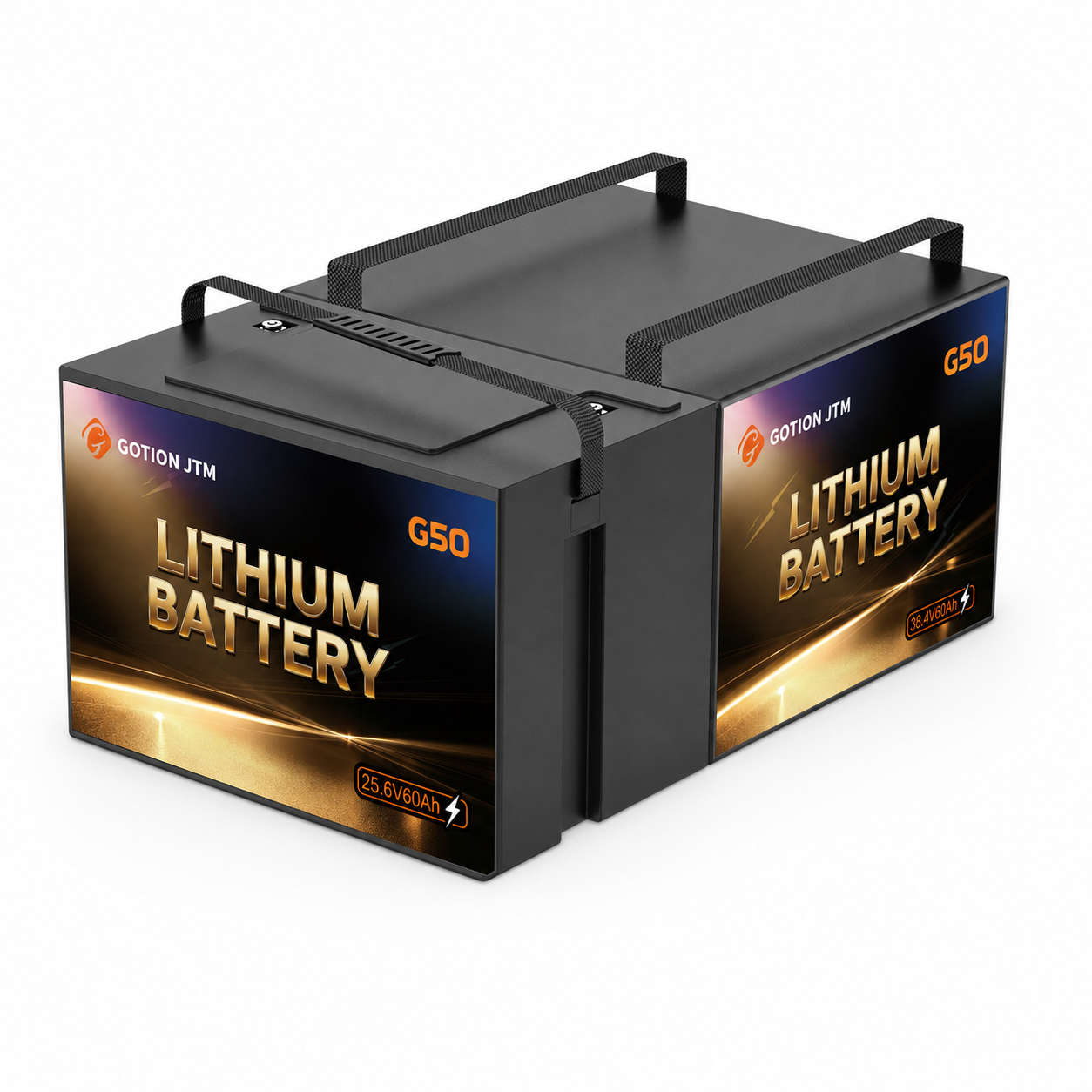

Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Module model	25.6V60Ah
Module model	38.4V60Ah
Nominal voltage	64V
Rated capacity	60Ah
Rated energy	3840Wh
Charge voltage limit	73V
Discharge cutoff voltage	50V
Maximum charge current	30A
Maximum discharge current	72A
Discharge temperature	-20℃~60℃
Charge temperature	-10℃~55℃
Communication	Bluetooth
Compatible power	≤2000W
Weight	24.5±0.8kg
Ingress protection	IPX7

Source record: p06-01 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
