Stack

7222LB

Check voltage, charger, operating current, connectors and installation clearance. A lithium upgrade is not automatically plug-and-play.

Discuss your project

Review preview. Product artwork and specifications require confirmation.

Source specifications

Original source data / English. Final model and variant require confirmation.

Nominal voltage	76.8V
Rated capacity	20AH
Rated energy	1536Wh
Charge voltage limit	87.6V
Discharge cutoff voltage	57.6V
Maximum charge current	16A
Maximum discharge current	30A
Discharge temperature	-20℃~60℃
Charge temperature	-10℃~55℃
Communication	Bluetooth
Ingress protection	IPX5
Weight	9.9±0.3kg
Compatible motor power	≤1000W

Product details

Shared illustration — BMS protection — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

APP monitoring

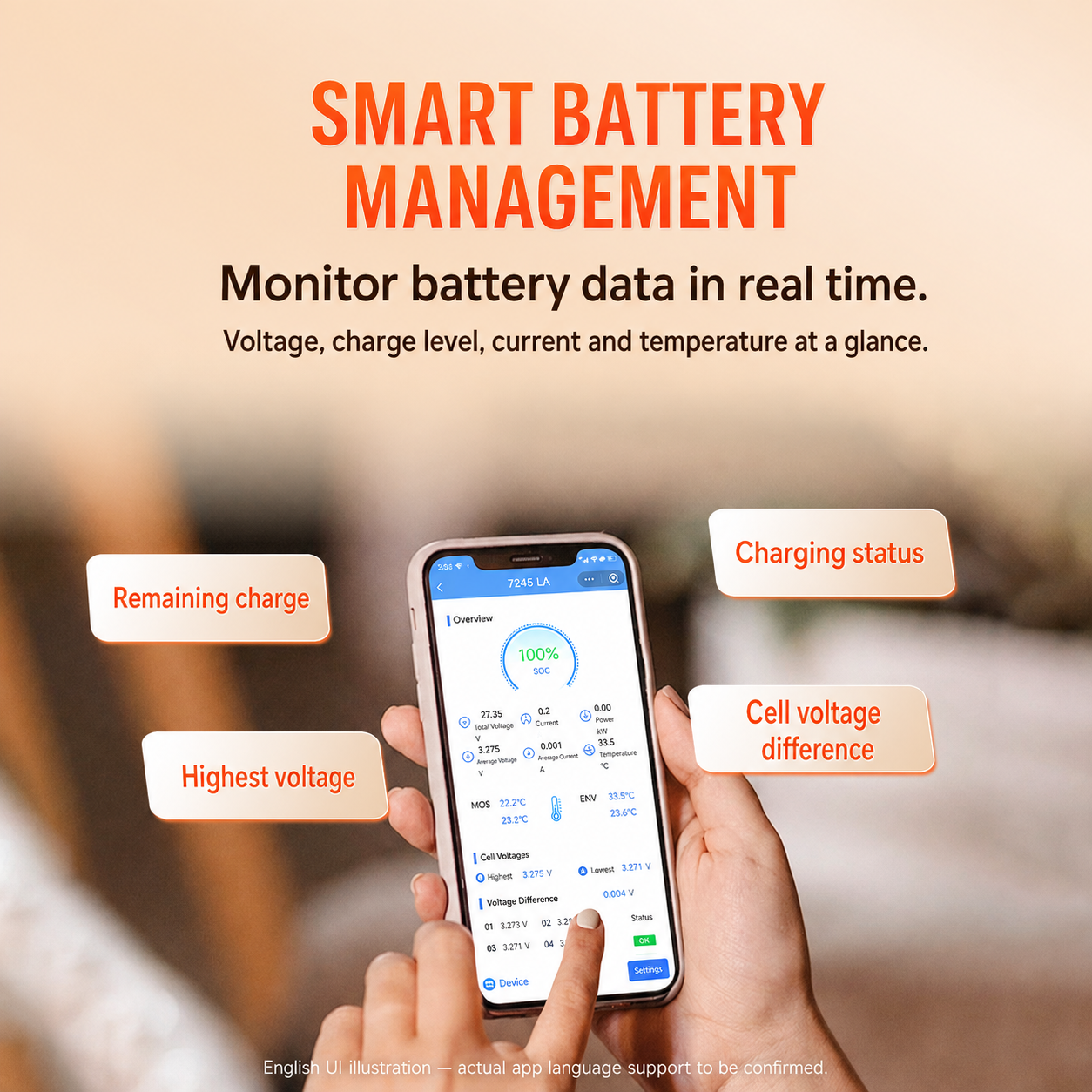

Shared illustration — APP monitoring — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

Riding scenarios

Shared illustration — Riding scenarios — Shared illustration using 7245LA examples. Displayed readings are not this model’s specifications. APP support, BMS functions and vehicle compatibility must be confirmed for your selected configuration.

Dimensions · in / mm

7222LB — Dimensions — inches & millimeters
