Zhiyuan SERIES

7232YA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage	76.8V
Rated capacity	30Ah
Rated energy	2304Wh
Charge voltage limit	87.6V
Discharge cutoff voltage	60V
Maximum charge current	12A
Maximum discharge current	40A
Discharge temperature	-20～60℃
Charge temperature	-10℃～55℃ / -20℃～55℃（with heating）
Compatible motor power	≤1500W
Communication	Bluetooth

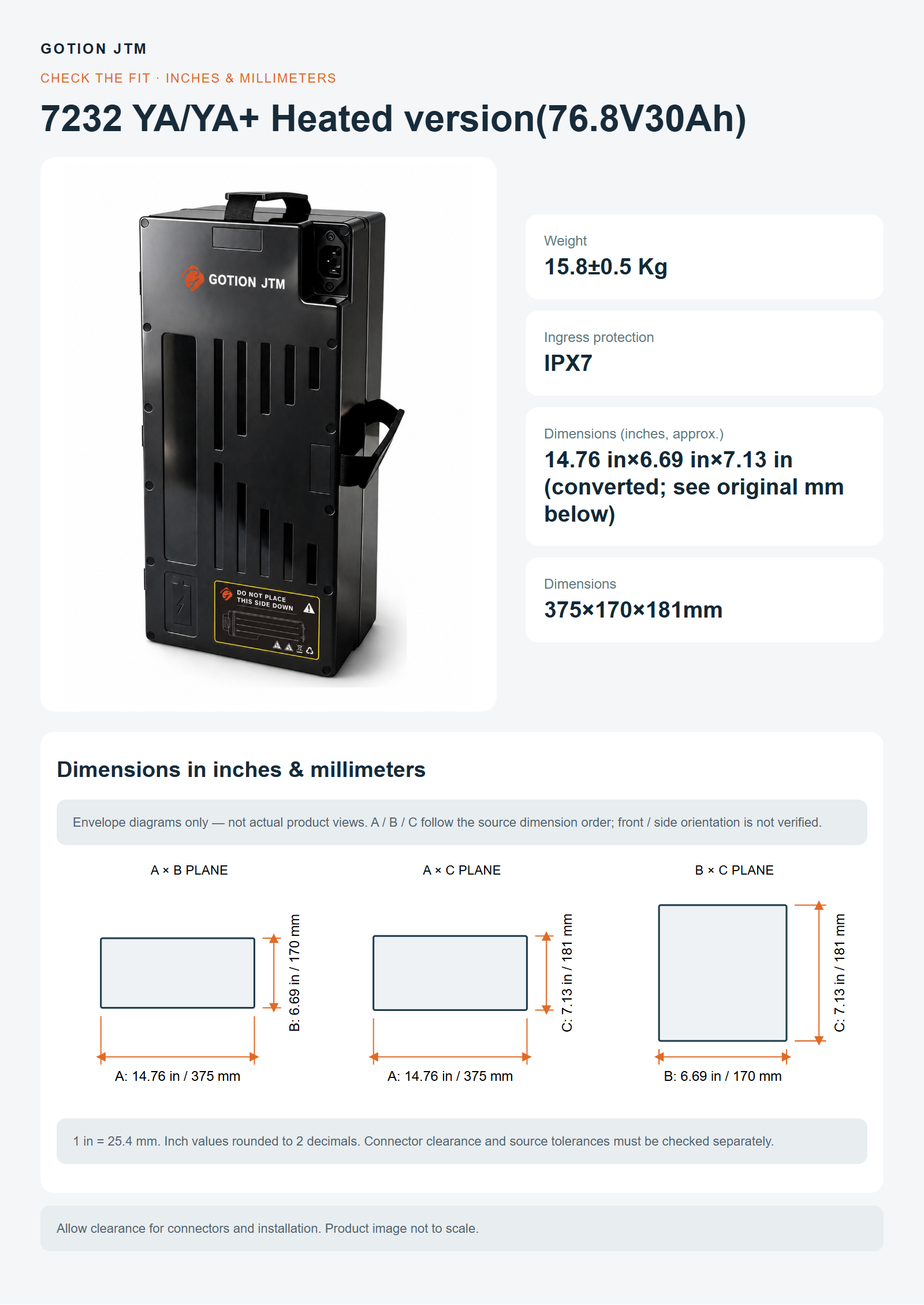

Weight	15.8±0.5 Kg
Ingress protection	IPX7
Dimensions	375×170×181mm

Source record: p17-01 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
