Zhiyuan SERIES

7258YA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage	76.8V
Rated capacity	54Ah
Rated energy	4147.2Wh
Charge voltage limit	87.6V
Discharge cutoff voltage	60V
Maximum charge current	27A
Maximum discharge current	100A
Discharge temperature	-20～60℃
Charge temperature	-10℃～55℃ / -20℃～55℃（with heating）
Compatible motor power	≤2500W
Communication	Bluetooth
Weight	35+1kg
Ingress protection	IPX5

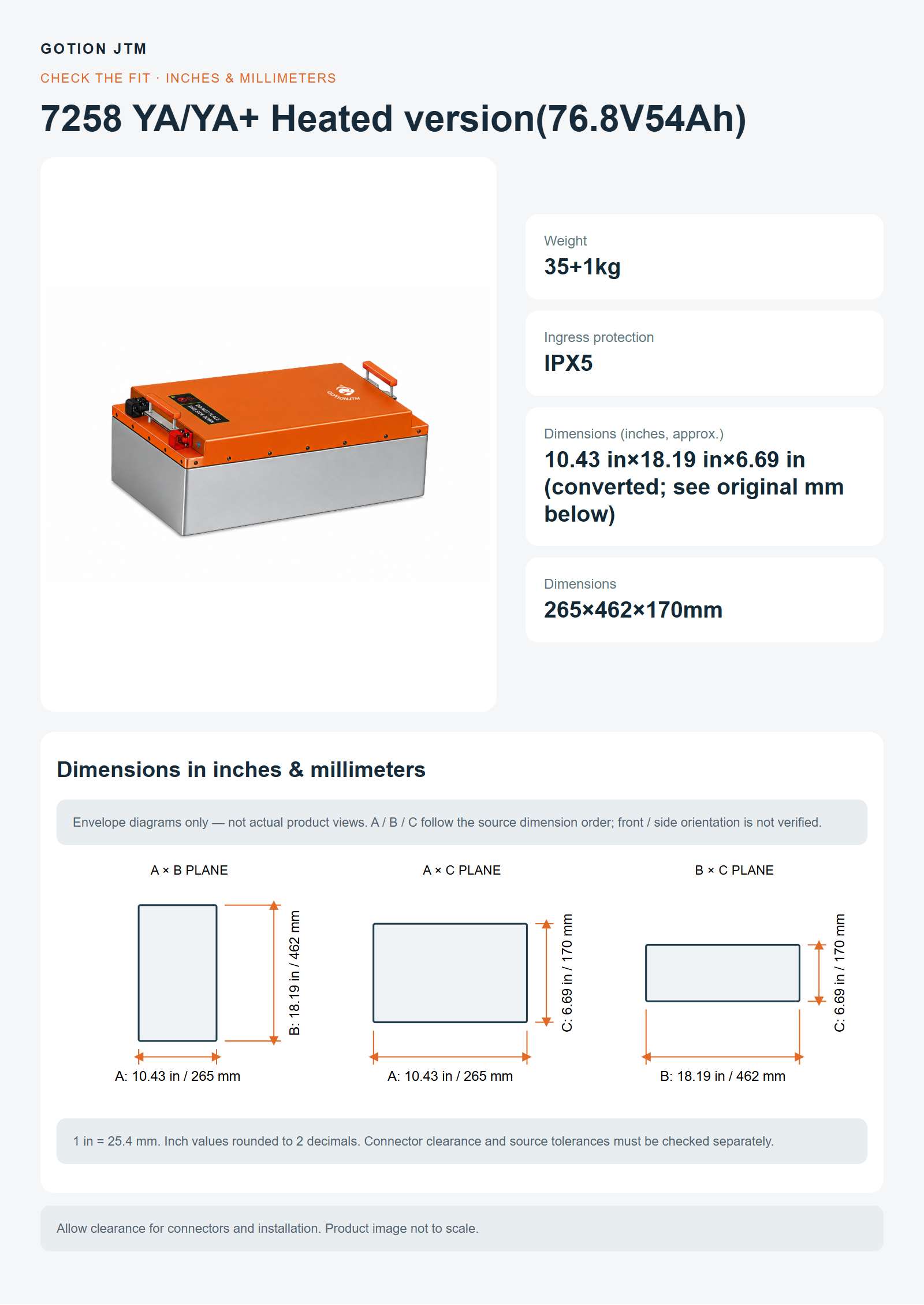

Dimensions	265×462×170mm

Source record: p19-02 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
