Diamond SERIES

7264ZA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Module model	12.8V60Ah
Nominal voltage	76.8V
Rated capacity	60Ah
Rated energy	4608Wh
Charge voltage limit	87.6V
Discharge cutoff voltage	60.0V
Maximum charge current	30A
Maximum discharge current	72A
Discharge temperature	-20℃~60℃
Charge temperature	-10℃~55℃
Compatible motor power	≤2000W
Communication	Bluetooth

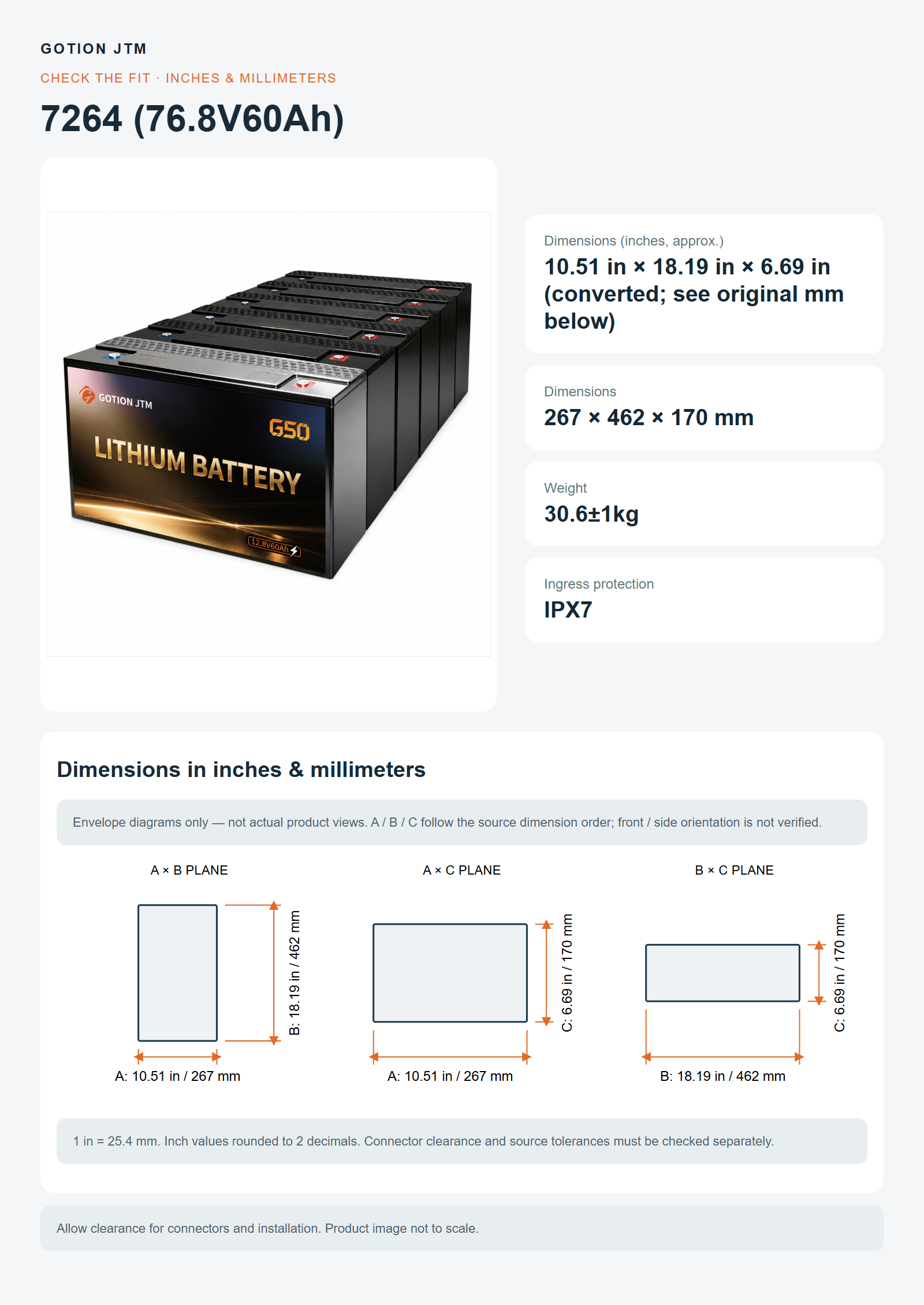

Weight	30.6±1kg
Ingress protection	IPX7

Source record: p03-03 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.
