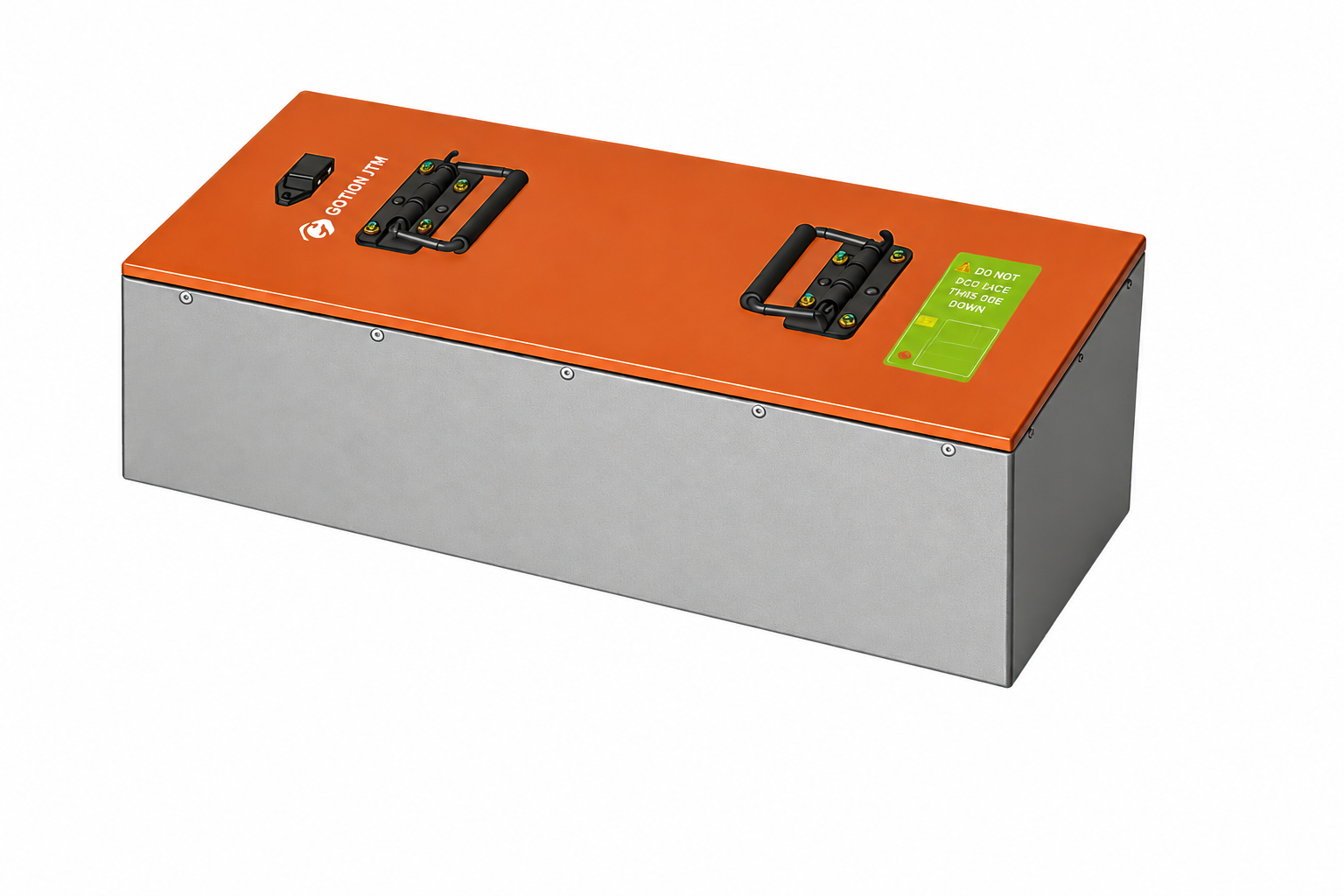

7298YA catalogue product artwork
Zhiyuan SERIES

7298YA
Battery Pack

Review the catalogue data, then discuss your installation and operating requirements.

Imported from existing project records, not independently reverified in this prototype. Product imagery is not evidence of compatibility or performance.

DISCUSS THIS MODEL

Catalogue specifications

Nominal voltage76.8V
Rated capacity91.5Ah
Rated energy7027Wh
Charge voltage limit87.6V
Discharge cutoff voltage60V
Maximum charge current45A
Maximum discharge current120A
Discharge temperature-20~60°C
Charge temperature-10℃~55℃ / -20℃~55℃(with heating)
Compatible motor power≤3500W
CommunicationBluetooth
Weight55Kg±lkg
Ingress protectionIPX5

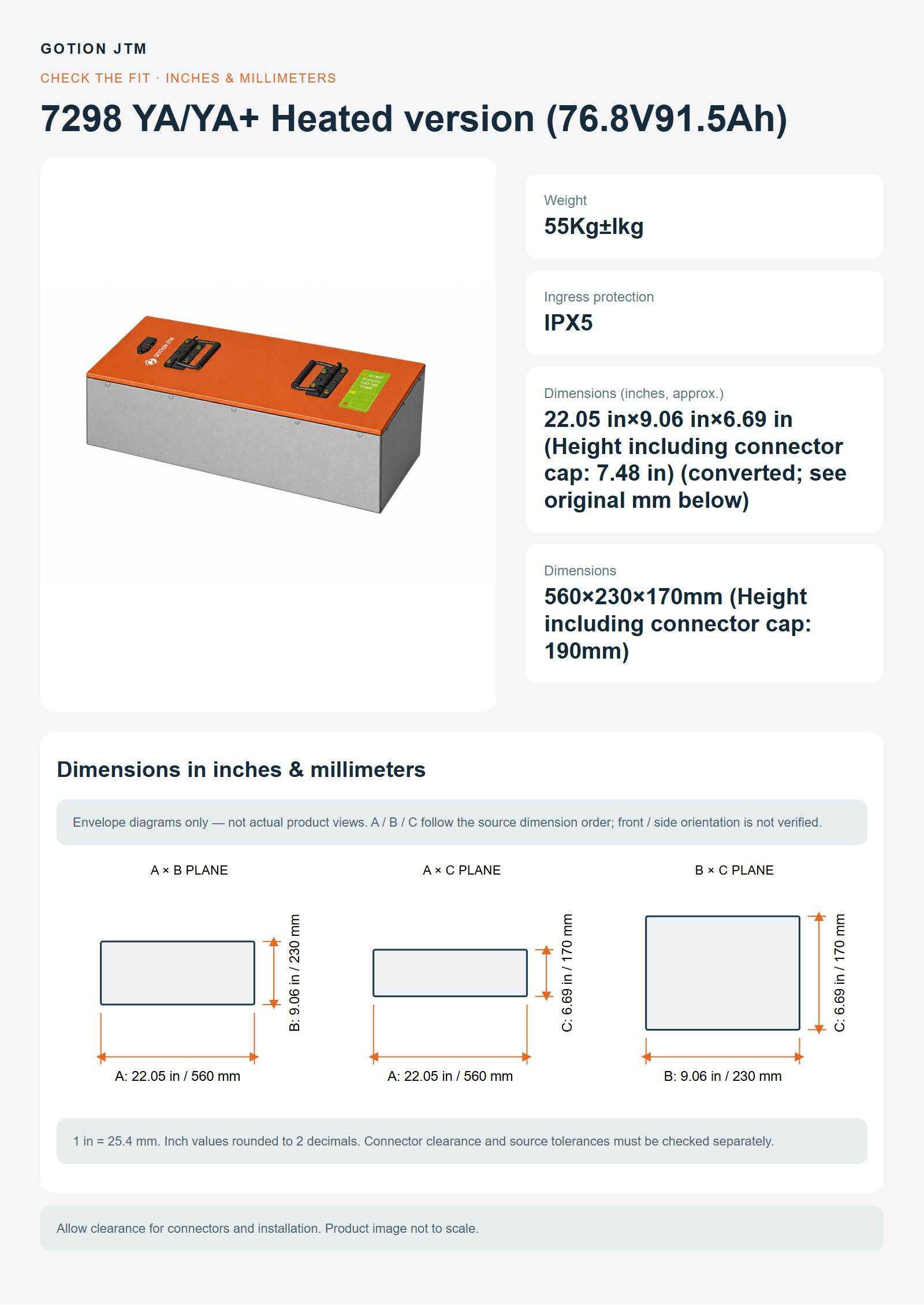

Dimensions560×230×170mm (Height including connector cap: 190mm)

Source record: p20-02 · Existing product catalogue dated 2026-05-09. Check the original manual and drawing before purchase.

Before selecting this pack

Confirm system voltage, charger settings, continuous and peak current, enclosure dimensions, connector orientation, communication and mounting. No universal vehicle compatibility is implied.

Documents & video — 7298YA

Open the model resource centre →

Read the catalogue specifications directly on this page. Released files will appear here only when matched to this model.

PDF datasheet

No model-specific PDF released yet.

Installation & user manual

No model-specific manual released yet.

Product video

No verified model-specific video released yet.

Request documentation for 7298YA →
↗
